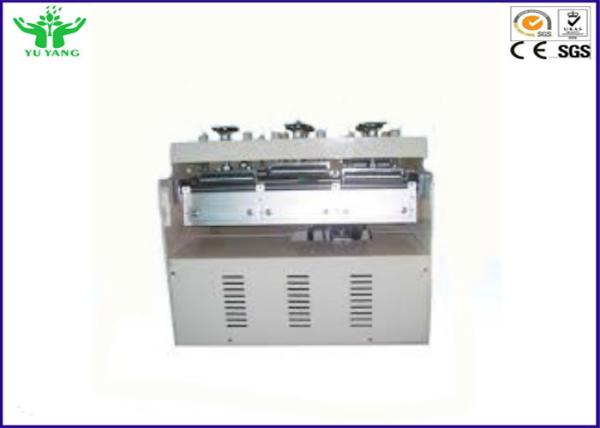

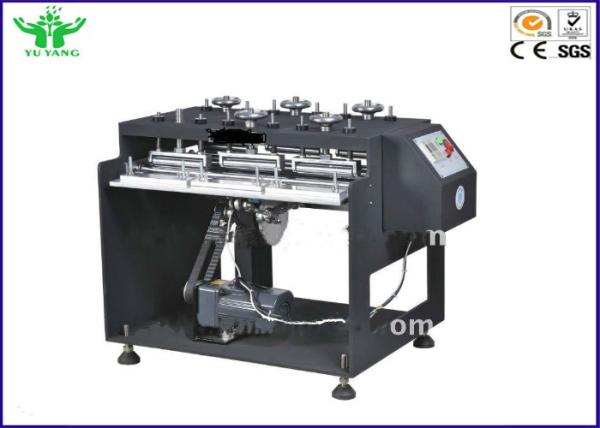

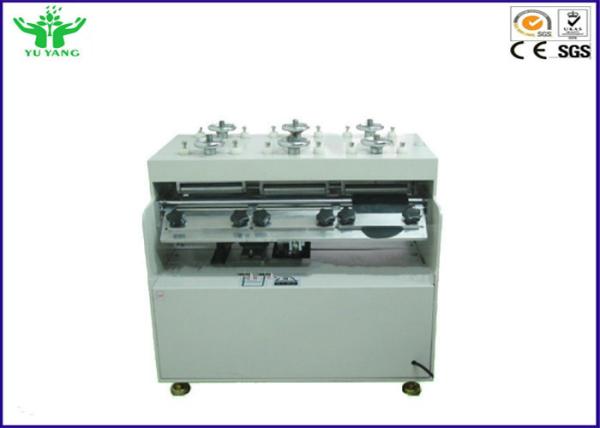

90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052
90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052
90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052
90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052
90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052
90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052
90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052
90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052
Specifications
Brand Name :
YUYANG
Model Number :
YYX-019
Certification :
ASTM D1052, BS5131 : 2.1 ASTM-D1052,ISO-5423,4643,HB-T2411 GB 20265-2006
Place of Origin :
CHINA
Supply Ability :
300 Piece/Pieces per Month
Delivery Time :
7 work days
Packaging Details :
wooden case
Bending angle :
90°max.
Bending speed :
100 ± 3 cpm (adjustable)
Specimen size :
(L)6”x(W)1”(D), sole 0.25”, rubber 1/2”-1/8, or whole sole
Clamp :
6 group 12pcs, can be test 6 sole in the same time.
Counter :
LCD 0～999,999
Motor :
Speed regulating motor from Taiwan
Dimension :
800×420×450mm(L×W×H)
Weight :
60kg
bending shaft diameter :
3/8"
Standard :
ASTM D1052, BS5131 : 2.1 ASTM-D1052,ISO-5423,4643,HB-T2411 GB 20265-2006
Description

90° Ross Folding Resistance/ bending resistance Testing Machine ASTM D1052

Detailed Descriptions:

90° ROSS Folding/bending resistance Test Machine is suitable for the rubber, soles, PU etc materials Right-angle folding resistance test.

Put the specimens into the tester, after continuously stretch out and draw back, bending, examine the damping, the degree of damage and cracking.

Specifications:

1. Bending angle: 90°max.

2. Bending speed: 100 ± 3 cpm (adjustable)

3. Specimen size: (L)6”x(W)1”(D), sole 0.25”, rubber 1/2”-1/8, or whole sole

4. Clamp: 6 group 12pcs, can be test 6 sole in the same time.

5. Counter:LCD 0～999,999

6. Motor: Speed regulating motor from Taiwan

7. bending shaft diameter:3/8"

8. Dimension: 800×420×450mm(L×W×H)

9. Weight: 60kg

10. Standard: ASTM D1052, BS5131 : 2.1 ASTM-D1052,ISO-5423,4643,HB-T2411 GB 20265-2006

Bending angle: 90°max.
Bending speed: 100 ± 3 cpm (adjustable)
Specimen size: (L)6”x(W)1”(D), sole 0.25”, rubber 1/2”-1/8, or whole sole
Clamp: 6 group 12pcs, can be test 6 sole in the same time.
Counter: LCD 0～999,999
Motor: Speed regulating motor from Taiwan
bending shaft diameter: 3/8"
Dimension: 800×420×450mm(L×W×H)
Weight: 60kg
Standard: ASTM D1052, BS5131 : 2.1 ASTM-D1052,ISO-5423,4643,HB-T2411 GB 20265-2006

90° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D105290° Ross Folding / Bending Resistance Footwear Testing Machine ASTM D1052

2. Bending speed: 100 ± 3 cpm (adjustable)
