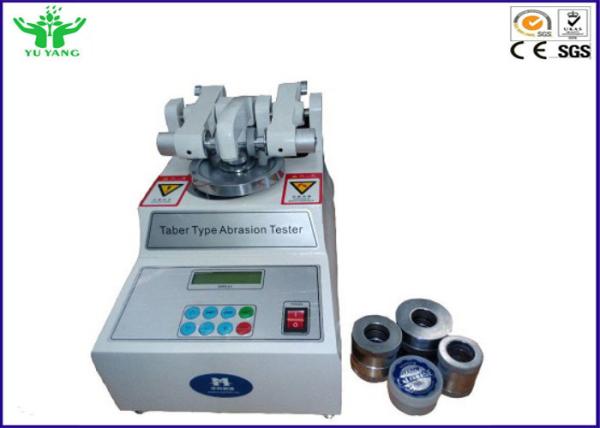

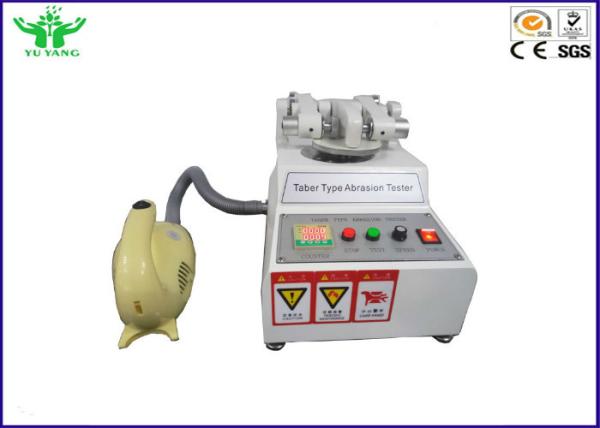

ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
Specifications
Brand Name :
YUYANG
Model Number :
YYX-005
Certification :
DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470
Place of Origin :
CHINA
Payment Terms :
L/C, T/T
Supply Ability :
300 /Sets per Month
Delivery Time :
5-8 work days
Packaging Details :
In Export Wooden Cases
Specimen :
O.D110mm，I.D:6mm
Abrasion wheel :
φ2″（MAX .45mm）1/2″(W)
Abrasion wheel center distance :
63.5mm
Abrasion wheel specimens with disc center spacing :
37~38mm
rotating speed :
60r/min
Loading :
250g，500g，750g，1000g
Dimension :
530×320×300mm（L×W×H）
Power :
1∮,AC220V,50HZ
Description

ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm,I.D:6mm

Detailed Descriptions:

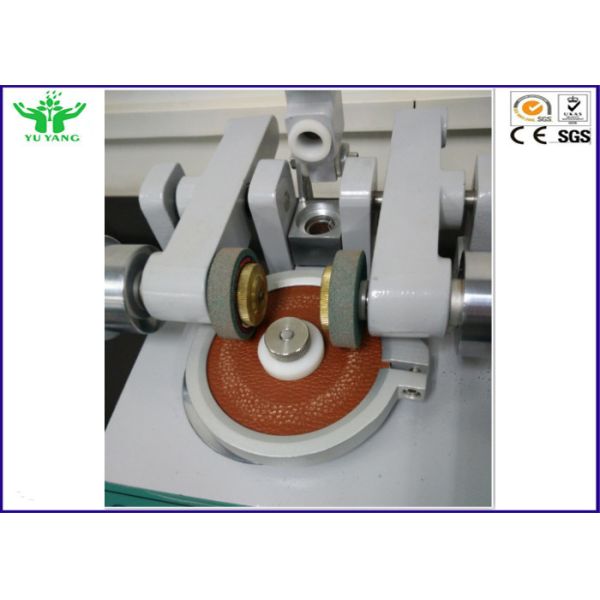

This machine Widely Used to testing wear resistant material,fabric, rubber,coating, plywood,paper, leather...etc. According to the different material with different grinding wheel wear test, Use standard knife cutting specimens, make specimen abraded by a pair of grinding wheels under the specified load.check before and after the abrasion of specimen weight difference to assess physical results.

Corresponding standard :

DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470;ISO9352-89

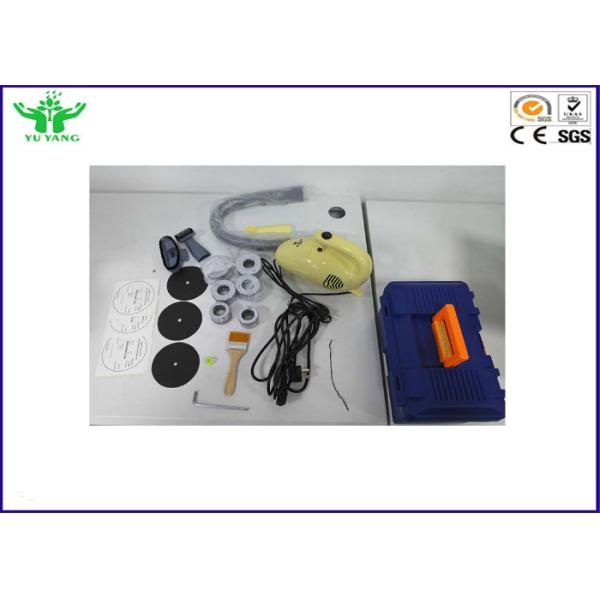

Default Configures:


Main unit 1pc
Located plate for sample settle 1pc
Mold for samples 1pc
Knife for samples 1pc

specifications:

Standard DIN-53754,53799,53109,52374,ASTM-D1044,D3884,ISO-5470
Specimen outside diameter 108mm, inside diameter 8mm, 3mm(D)
Grinding wheel diamter2'' (max.45mm)1/2''(W)
Space between grinding wheels 63.5mm
Grinding wheel and plate's space 37~38mm
Rotating speed 60/72 rpm
Load 250,500,1000g

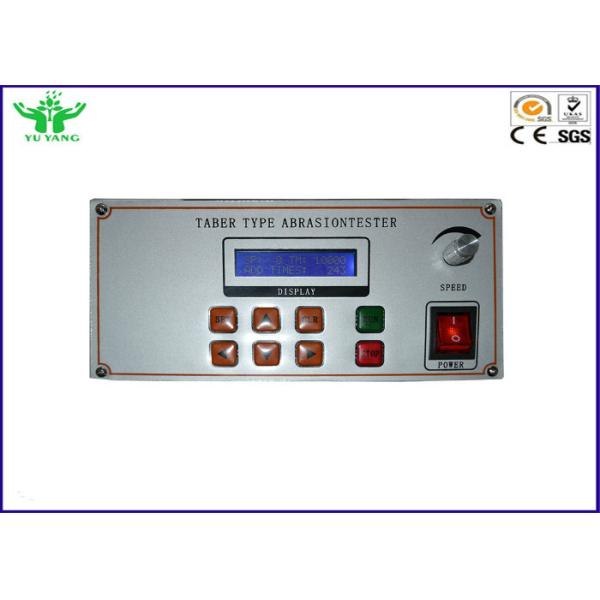

Counter LCD,0~999,999
Distance between specimen and hose 3mm
Dimension (W*D*H) 53*32*31cm + vacuum cleaner
Weight 18kg
Power AC 220V 10A

ASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mmASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mmASTM-D1044 63.5mm Footwear Abrasion Testing Equipment O.D110mm I.D 6mm
