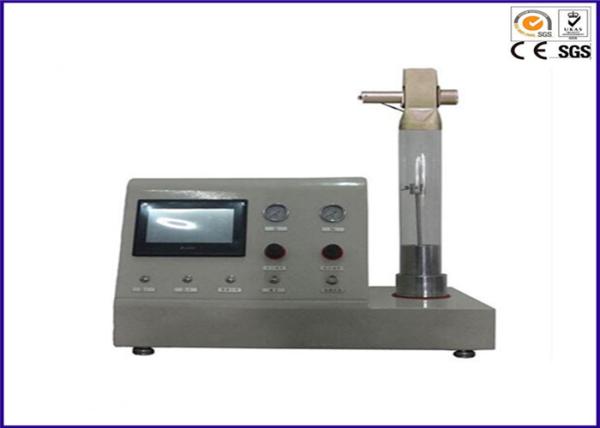

High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables
High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables
High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables
High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables
Specifications
Brand Name :
YUYANG
Model Number :
YY913
Certification :
ASTMD2863, ISO4589, GB/T2406-93
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 sets per month
Delivery Time :
5 work days
Packaging Details :
Plywood Box
Product Name :
Oxygen Index Apparatus
Usage :
Limit Oxygen Index Test
Material :
Stainless Steel
Power :
220V 50HZ 16A
Response time :
<10S
Combustion tube inner diameter :
≥ 75 mm
gas flow rate :
40mm ± 10mm / s
Working pressure :
0.1Mpa
Description

High Profermance EN ISO 4589-2 Limit Oxygen Index Test Apparatus

Application:

Under predetermined conditions, in a mixed stream of oxygen and nitrogen measured, just to maintain the minimum oxygen concentration of the sample required for combustion (also known as the oxygen index) - expressed in percent by volume. It can be used to determine the combustion performance of a variety of textiles, including woven, knitted and non-woven fabrics, etc. Also be used to determine the burning of the plastics, rubber, paper, etc

Standards:

ASTMD2863, ISO4589, GB/T2406-93

GB/T5454-1997 :"Determination of burning behavior of textile products approved oxygen index assays"

GB/T2406.2-2009: "Plastics - Determination of burning behavior - Part 2 at room temperature Oxygen Index test method."

ISO 4589-2 :Plastics-Determination of burning behaviour by oxygen index-Part 2: Ambient-temperature test Plastics - Determination of burning behavior by oxygen index - Part 2: Test temperature

ASTM D 2863: is similar to the supply of plastic burning candle minimum oxygen concentration measuring method (oxygen index)

BS 2782-1: Method 141 plastic test methods - Part 1: Thermal Properties Method 141 combustion oxygen index determination

Technical Parameters:

Sensor Imported oxygen LCD display
Digital display of oxygen concentration 0-100%
Resolution ± 0.1%
Measurement accuracy 0.5
Response time <10S
Combustion tube inner diameter ≥ 75 mm
The gas flow rate of the combustion cylinder 40mm ± 10mm / s
Working pressure 0.1Mpa
The oxygen / nitrogen mixed gas inlet: including the regulator valve, the flow regulating valve, a gas filter, and the mixing chamber.
The sample holder can be used for soft and hard plastic.
Propane (butane), the ignition system, the flame length 5mm-60mm can be freely adjusted
Gas: industrial grade oxygen / nitrogen
