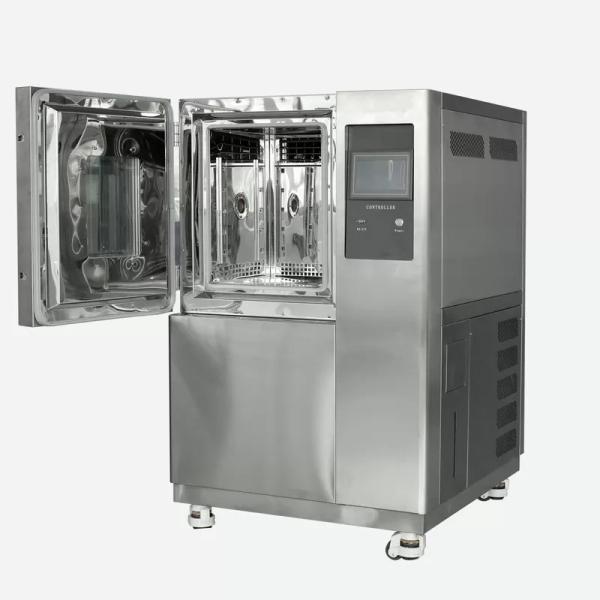

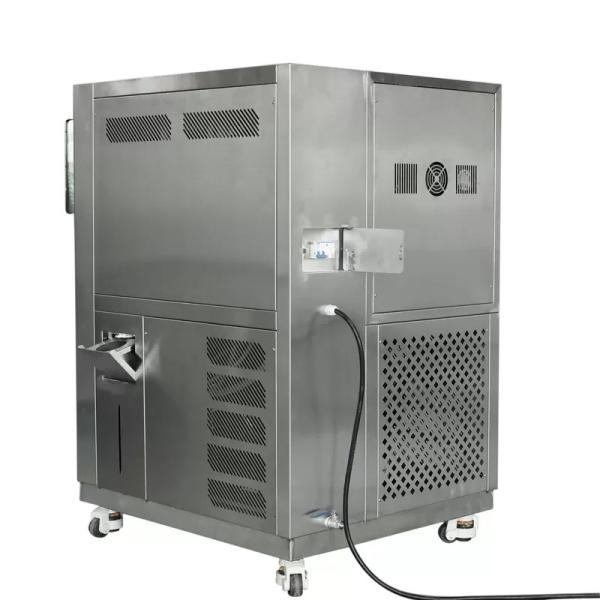

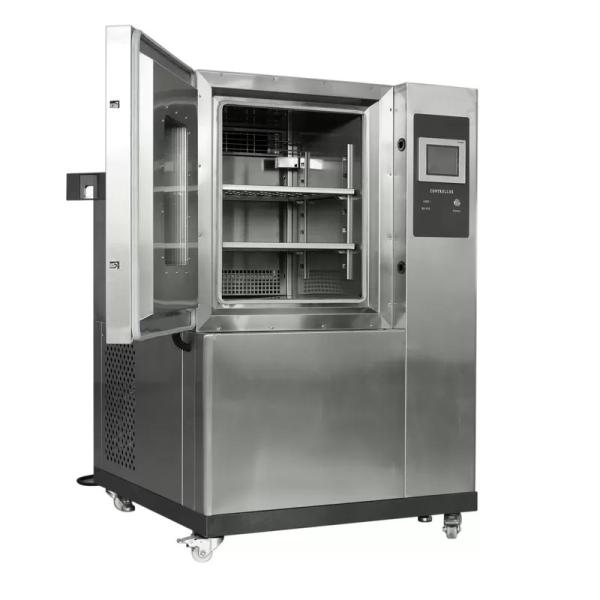

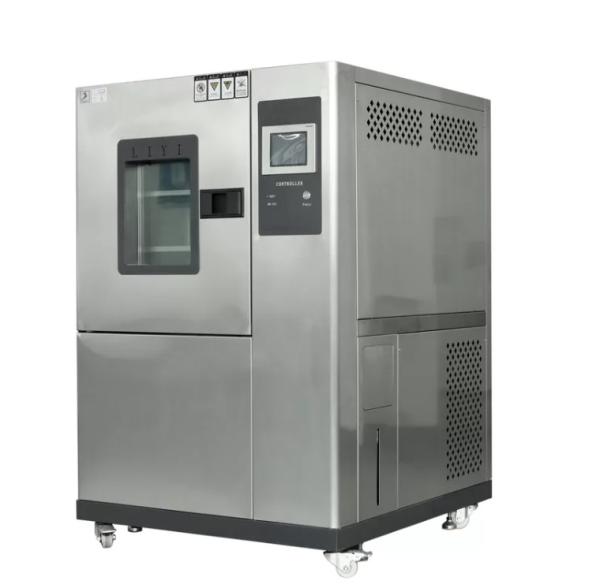

Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Specifications
Brand Name :
YUYANG
Model Number :
YY1078
Certification :
CE, UL, ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2 sets per month
Delivery Time :
15-20 work days
Packaging Details :
Plywood Case
Product Name :
Environmental Test Chamber
Humidity Range :
20%-95%RH
Heating Time :
According To Chamber Size
Temperature Range :
-40~150°C -20~150°C
Stability Humidity :
±2%RH
Stability Temperature :
±0.5 Centigrade
Deviation :
≤±2°C/±3%RH
Description

Customizable Humidity Chamber Temperature Stability Enviornmental Chamber

Application:

Touch Screen Temperature Humidity Environmental Test Chamber can simulate different environment condition. It is appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.

Related Standards:

IEC600628 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566

Characteristics:

1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature and humidity environment.

Model YY-280 YY-2150 YY-2225 YY-2408 YY-2800 YY-21000
Inner Size W×H×D(cm) 40×50×40 50×60×50 50×75×60 60×85×80 100×100×80 100×100×1000
External Size W×H×D(cm) 93×155×95 100×148×106 117×166×118 122×176×121 158×186×148 158×195×168
Volume(L) 80 L 150L 225L 408L 800L 1000L
Temp&Humi Control Range

Temp. Range: A: -40℃～150℃ Humi.range: RH20%-98%

B: -60℃～150℃

C: -70℃～150℃

(Other temperature and humidity range can be customized)
Temp&Humi Fluctuation ±0.5℃；±2.5%RH
Temp&Hum Departure ±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller Resolution ±0.3℃；±2.5%RH
Controller Brand Korean TEMI880
Material Inwall SUS 304# steel plate
Housing SUS 304# steel plate surface fog processed
Heat Insulator resistance to high temperature, high chlorine acid b vinegar foam insulation materials
Aie Circulation Way centrifugal fan-broadband type force air circulation
Refrigeration Way cascade type multiple refrigeration
Refrigerater fully enclosed piston compressor Taikang France
Refrigerants R4O4A or American dupont environmental protection cold media(R23+R404)
Condensing Way Air-cooling
Heater nickel chrome heating wire heater
Humidifier semi-closed steam
Water Supply Way automatic cycle water supply
Standard Accessaries *50mm test hole on the left............................................................1PCS
*PL inner lamp................................................................................1PCS
*Adjustable clapboard.....................................................................2PCS
*Humidity cloth...............................................................................1Bag
*Fuses..............................................................................................3PCS
*Power line.......................................................................................1PCS
*Software CD....................................................................................1PCS
*Operation manual.............................................................................1PCS
Safety Devices *Leakage current
*Overload
*Compressor overload
*Over temperature
*Ultra-wet/dry
*Humidification temperature protection.
Power 380/ 220V AC±10% 50/60Hz

Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
