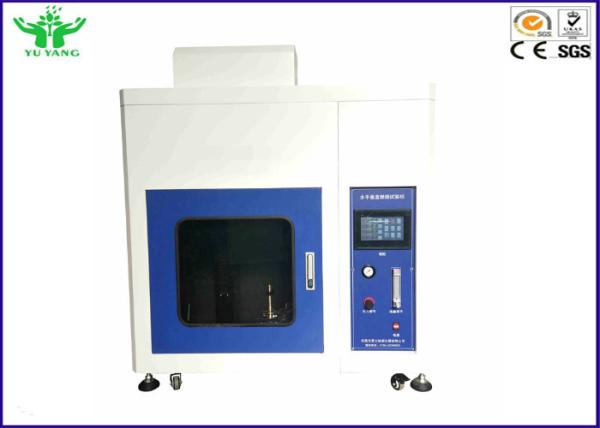

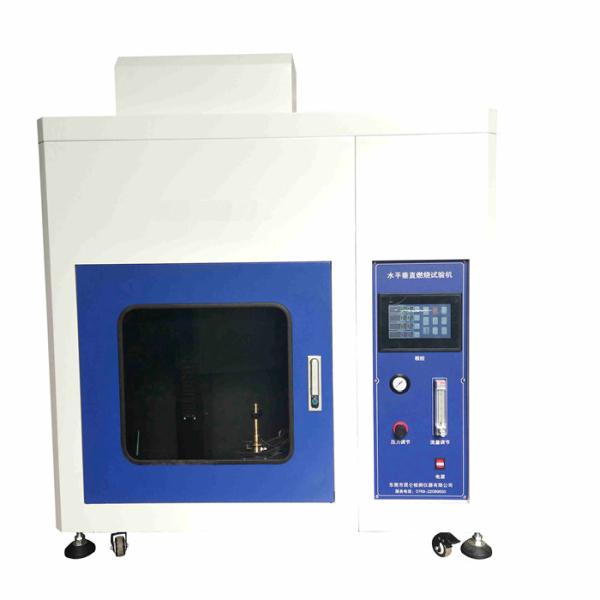

UL 94 Touch Screen IEC60950-11-10 Plastic Horizontal and Vertical Flame Test Chamber

Description:

The horizontal vertical flame test chamber is a simulated safety test project according to GB/T5169.15; GB/T5169.16; GB/T5169.17 (IEC60950-11-10), UL 94 and other standards.
The horizontal and vertical testing machine uses a Bunsen burner of a specified size and a specific gas source (methane or natural gas) to ignite a number of samples in a horizontal or vertical state at a certain flame height and a certain flame angle. The flammability is evaluated by the igniting of the test article, the duration of the burning and the ignition of the test underlay.
Horizontal fire test machine for fire protection enclosures for mobile equipment with total mass exceeding and not exceeding 18kg; fire protection enclosure for standing equipment; materials placed in fire enclosure; V-0, V-1, V-2, HB, flammability of HF-1, HF-2, HBF grade materials or foams is graded.
Applicable to GB4706.1, GB8898.1, GB4943.1, GB7000.1, GB4793.1 and other standards, such as lighting equipment, low-voltage electrical appliances, household appliances, machine tools, electrical machinery, power tools, electronic equipment, electrical instruments, information technology The research, production and quality inspection departments for electrical and electronic products and their components, such as equipment, electrical equipment, electrical connectors and accessories, are also applicable to insulating materials, engineering plastics or other solid combustible materials industries.

Standards:

UL94,

GB/T5169.15,

GB/T5169.16,

GB/T5169.17,

IEC60950-11-10

Burner and gas control:

1. 0°and 45°angle burner convenient adjustment;
2. The United States imports Bunsen burner, tube length 100mm ± 10mm, inner diameter of 9.5mm ± 0.3mm; full compliance with the requirements IEC60695-11-4 burner;
3. Burner itself can adjust the air and gas flow;
4. Japan imported flow meter and flow valve, precise control of the combustion gas flow
5. High-precision pressure control valve and pressure gauge
6. U-shaped tube differential manometer;
7. Precise control of the flame height 20mm ± 2mm;
