Specifications
Brand Name :
YUYANG
Model Number :
YY166
Certification :
ASTM D1238, ISO 1133
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 sets per quarter
Delivery Time :
15 work days
Packaging Details :
Plywood Box
Product Name :
Flammability Testing Equipment
Usage :
MFR/MVR
Standard :
ASTM D1238, ISO 1133
Testing range :
0.1-800.00 cm3/10min(MVR)
Temperature range :
Room temperature-400°C
Cylinder diameter :
9.5504±0.0076mm
Size :
(L×W×H) 40×51×60cm
Description

ASTM D1238 ISO 1133 Electric Melt Flow Rate Tester of PP PE Material MFR/MVR

Description:

Melt Flow Index Tester is used to test the flowability of thermoplastic polymer under high temperature, such as polyethylene, polypropylene, pom, ABS resin, polycarbonate, nylon fluorine and other plastic polymers. The automatic temperature control methods of the machine three kinds of blanking ways, manual, timing and automatic control according to operation method, which can realize melt-mass flow rate (MFR) and melt-volume flow rate (MVR) two test methods.


Application:


Melt Flow Index tester is used to determine the MFR value of melt flow rate in the viscous flow state of various polymers, it is applicable to the high melting temperature of polycarbonate, poly-aryl sulfone, fluorine plastic, nylon and other engineering plastics, also applicable to polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, poly (POM), polycarbonate (PC) Resin, such as low melting temperature of plastic testing, widely used in plastic production, plastic products, petrochemical and other industries.


Standard:

ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)...

Specification:

Testing range 0.1-800.00g/10min (MFR); 0.1-800.00 cm3/10min(MVR)
Temperature range Room temperature-400°C
Controlling Accuracy ±0.2°C
Timing accuracy 0.1s
Displacement accuracy 0.01mm

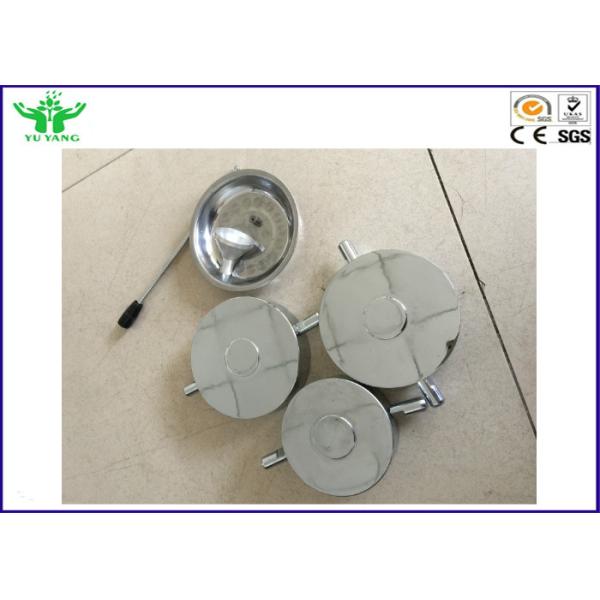

Standard loads 325g, 875g, 960g, 1200g, 1640g, 2500g, 4100, 5000g & 5000g
Combination load 325g, 1200g, 2160g, 3800g, 5000g, 7160g, 10000g, 21600g
Material cutting method Manual, timing and automatic cutting
Time setting 0.1~999.9min
Cylinder Diameter 9.5504±0.0076mm
Land of piston Diameter 9.4742±0.0076mm, length: 6.35±0.13mm
Thin hole pattern

External diameter: 9.5±0.02mm;

Bore diameter 2.0955±0.0051mm; length 8.00±0.025mm
Machine Size (L×W×H) 40×51×60cm
Accessory One set computer& software, one tool box, one piece operation video CD and one piece English manual
Design standard ASTM-D1238, ISO 1133
