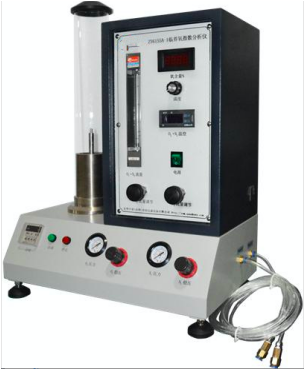

High Temperature Oxygen Index Tester For Fabric ASTM D2863
High Temperature Oxygen Index Tester For Fabric ASTM D2863
High Temperature Oxygen Index Tester For Fabric ASTM D2863
High Temperature Oxygen Index Tester For Fabric ASTM D2863
High Temperature Oxygen Index Tester For Fabric ASTM D2863
High Temperature Oxygen Index Tester For Fabric ASTM D2863
Specifications
Brand Name :
YUYANG
Model Number :
YYF031
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
$1000
Payment Terms :
T/T
Supply Ability :
10 Pcs Per Month
Delivery Time :
5-30 Days
Packaging Details :
Wooden Box
Product Name :
Limited Oxygen Index Apparatus
Temperature :
Room Temperature~40 Degree
The Maximum Power :
0.5 KW
Response Time :
<5s
Equipment Dimensions :
0.54 *0.33*0.6 (L*W*H)m
Power :
220V 50HZ
Description

High Temperature Oxygen Index Tester For Fabric,ASTM D2863 Oxygen Index Test Apparatus

Application:

Limited Oxygen Index with Smoke Density Tester is designed according to ISO4589.1-2006, it applies to analysis the minimum oxygen concentration needed to maintain combustion of the sample when the sample is under the test conditions specified in oxygen and nitrogen mixed gas;

This tester is installed with domestic oxygen sensor, and automatic control the oxygen and nitrogen flow. It is very easily and quickly to operate; It is used for evaluating homogeneity of solid materials, laminates, foam, film and thin film in the specified conditions of flammability.

Features:

1. Adopts England original Servomex Paramagnetic type oxygen sensor, which accuracy can be up to +/-0.1%;
2. The sensor is better than traditional electrochemical sensor, because it don't need to change oxygen battery, so, it has long lift time more accurate and faster response time.
3. Equipped with 2pcs Mass Flow Controller(MFC) to control N2 and O2 mixing ratio;
4. Equipped with high temperature quartz glass tank;
5. Equipped with supported and unsupported sample clamps;
6. Equipped with portable ignition device, gas tank connector, accurate pin valve to adjust the flame;
7. Digital setting N2 and O2 concentration;
8. Computer+LABVIEW software to control N2 and O2 mixing ratio, read O2 concentration in mixing chamber, and store&print out test results;
9. Reserve a calibration port to calibrate the sensor;
10. Stainless steel air channel design, equipped with one way fire-resistance valve, magnetic valve, fine filter, so, it is stable
and safe;
11. Patented design gas mixing chamber, which ensure the gases can mix the gases in short time, data is more accurate;

Standards:

GB/T 2406.2, ASTM D2863, NES 714, ISO 4589-2

Specification:

Oxygen concentration measurement range

0~90%

Accuracy of oxygen concentration

0.1%

Oxygen flow meter range

0~10.0l/min

Nitrogen flow meter range

0~15.0l/min

Response time

<10s

Oxygen concentration measurement accuracy

± 0.4%

Combustion tube top airflow

90mm ± 10MM/s

Combustion air flow in cylinder

40mm/s ± 2mm/s

Concentration control accuracy

± 0.1%

Measurement time accuracy

± 0.5S

Jet flame of portable igniters

16± 4mm, adjustable;

Double flow meter and pressure gauge devices

±1% in precisionrement accuracy

Our Company:

DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation. We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc. Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment.

YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc.

All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on. DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world.

If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.
