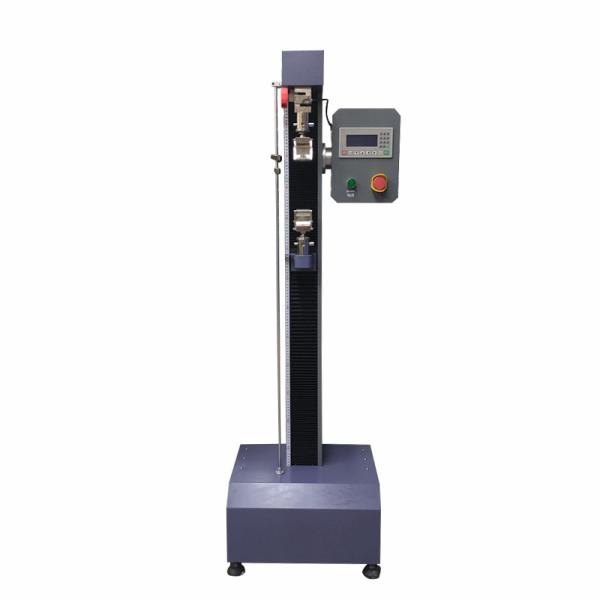

Electronic Computer Universal Tensile Testing Machine Strength Test Price

Product Description:

The Electronic Multifunction Socks Tensile / Digital Socks Tensile Instrument is mainly used to determine the straight

extension and transverse extension of stockings, swimwear, pantyhose, belly and knitted pants.

Tensile test machines, also known as tension test machines, tensile tester or pull tester, are universal testing machines

specially configured to evaluate the tensile strength of specimens. Our tensile testers will measure characteristics such

as ultimate tensile strength, yield strength, elongation, and modulus. Each tensile test machine is configured to your

testing needs by our application engineers with the correct controller, grips, and accessories.Choose from 10 different

frames and two different technologies with 100’s of configurations which allows you to optimize your testing capabilities

and pick exactly what you need.That means you get the exact system that matches the specifications you need and fits

within your budget. More choices mean fewer compromises.

The main parameters:

1. Tensile speed: 20mm / s-250mm / s Promise adjustable;
2. Test movement: 100-3000mm; (can be customized to increase to 3400mm);
3. Rated tension, 0.1N-200N adjustable range, the test tensile force can be set according to the actual test requirements;
4. Side set LCD controller, set the tensile speed, rated tension, stretch holding time and other test conditions parameters,

real-time display test test results;
5. Configuration pre-tensioning weight, manual fixture;
6. Test can be completed to test the sample elongation;
7. Structure size: 1000mm *700mm*3500mm;
8. Weight: 120kg.

Main Features:

1, the control panel location of about 100cm high, ergonomic and practical needs, easy to operate;
2, vertical stretching structure, easy to sample installation and testing;
3, vertical vertical structure, horizontal footprint is small;
4, Siemens PLC control system, precise control, stable and reliable.

Performance Characteristics:

The instrument has built-in constant tensile test mode, fixed tensile tensile test mode, satisfying different test requirements

such as fixed elongation force, constant elongation rate and constant timing elongation. The system has a built-in force elongation, ,

Elastic recovery, plastic deformation and other test options to facilitate the user to choose the test method.

Standards:

FZ / T 70006, FZ / T 73001, FZ / T 73011, FZ / T 73013, FZ / T 73029, FZ / T 73030
