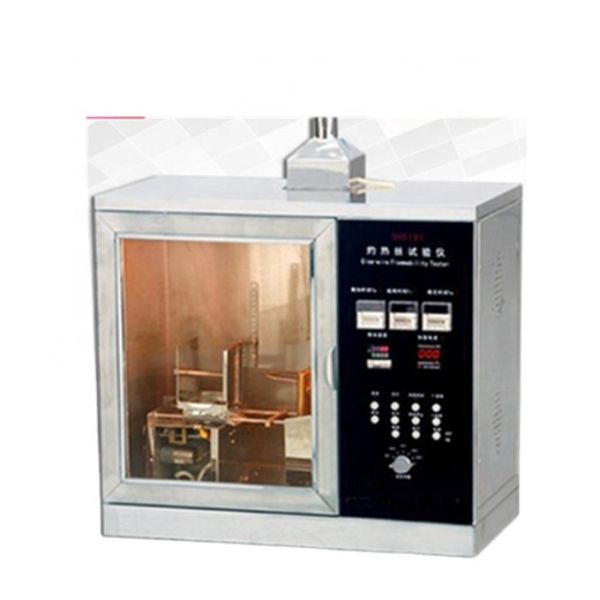

Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Specifications
Brand Name :
YUYANG
Model Number :
YYF059
Place of Origin :
China
MOQ :
1PCS
Price :
$1750
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-30 Days
Packaging Details :
Wooden Box
Product Name :
Flammability Testing Equipment
Usage :
Needle Flame Test
Material :
Stainless Steel
Test Chamber :
0.5 Cubic Meters
Flame Temperature Measurement :
100 ℃ ± 2 ℃ To 700 ℃ ± 3 ℃
Burner Needle Diameter :
Diameter 0.5 ± 0.1mm
Description

Flammability Testing Equipment For Needle Flame Test Stainless Steel Housing

Requirements:

Faults in the product such as fault currents flowing through the leakage path, overheating of components or parts, poor contact, etc. may cause a flame, which may then be directed to nearby parts.

The needle flame test simulates the internal part of the product. A small flame is generated under fault conditions and the risk of ignition is assessed using simulation techniques. For small parts (or components) Glow-wire test or horizontal-vertical combustion test method is not

suitable, can be cited needle flame test method. If the test sample is ignited during the glow-wire test, the resulting combustion hazard is subject to a needle-flame test. Needle flame tester for electrical and electronic products, household appliances parts, components and components,

such as:

wiring board, centrifugal switch, rice cooker socket ... ....

Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber

Standard:

in line with international GB / T5169.5 and GB / T 4706.1 standard "needle flame test method"

requirements.

Function and technical index:

The flame of the test is made of bottled butane gas.

The needle of the burner needle has the diameter Φ0.5 ± 0.1mm, the outside diameter is no

more than Ø0.9mm and the length is more than 35mm. Adjustable 12 ± 1mm, according to the

standard requirements transferred to a height measuring instruments. Flame temperature

measurement from 100 ℃ ± 2 ℃ to 700 ℃ ± 3 ℃ time in 23.5s ± 1.0s within. (Tb)

Features:

Combustion tank and the main mechanical part of the stainless steel, manufacturing stress,

resistance to smoke, gas corrosion.

The flame can be used in the range of 0 to 99 minutes and 99 seconds, automatic control, record

the burning duration.

Key components using imported parts, digital time, fixture three-dimensional adjustable, control

system automation, independent ventilation, observation and easy to use, stable and reliable.

Test chamber: 0.5 cubic meters.
