0.5KW Flammability Testing Equipment , Decomposition Smoke Density Test Apparatus
0.5KW Flammability Testing Equipment , Decomposition Smoke Density Test Apparatus
0.5KW Flammability Testing Equipment , Decomposition Smoke Density Test Apparatus
0.5KW Flammability Testing Equipment , Decomposition Smoke Density Test Apparatus
0.5KW Flammability Testing Equipment , Decomposition Smoke Density Test Apparatus
0.5KW Flammability Testing Equipment , Decomposition Smoke Density Test Apparatus
Specifications
Brand Name :
YUYANG
Model Number :
YYF011
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
$4500
Payment Terms :
T/T
Delivery Time :
7-30 Days
Packaging Details :
Wooden Box
Product Name :
Smoke Density Test Apparatus
Smoke density measurement range :
0 ~ 100%
Smoke density measurement accuracy :
±3%
Receive the lens focal length :
60 ~ 65 mm
Main burner work pressure :
276 kpa (adjustable)
Auxiliary combustion chamber pressure :
138 kpa (adjustable)
Using power :
0.5 KW
Description

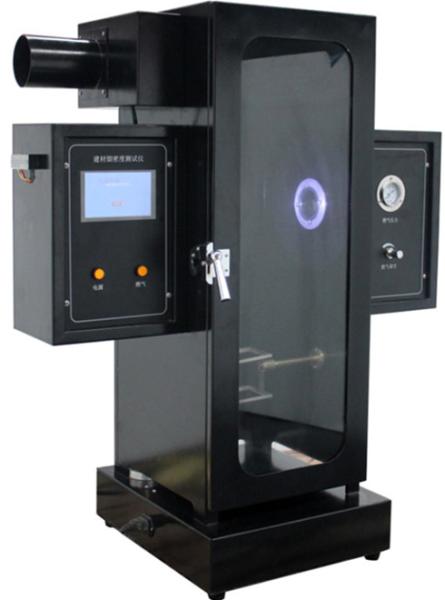

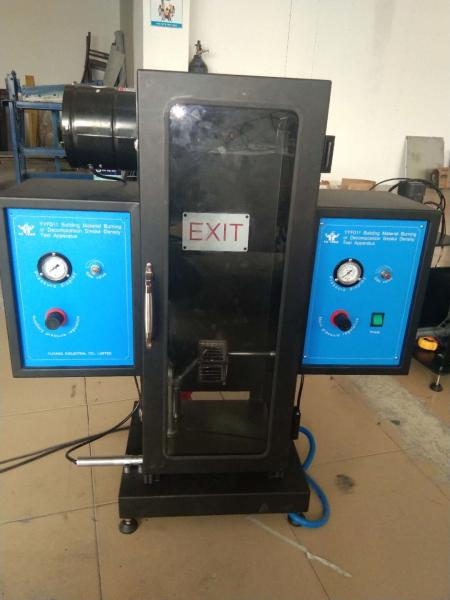

Micro-computer Plastic Burning or Decomposition Smoke Density Test Apparatus

Application:

The test apparatus is used for measuring the somke-producing characteristic of plastics under controlled

condition of combustion or decomposition, and also can be used for other building materials.

Standards:

ASTM D 2843,DIN 4102,GB/T 8627

Specification:

1. Gas source: 95% propane gas or higher purity, or the same purity of gas(owned);

2. Photometric system: a light source for the light bulb 15 w, working voltage of 6 v.

3. Smoke density measurement range: 0 ~ 100%;

4. Smoke density measurement accuracy: ±3%;

5. Receive the lens focal length: 60 ~ 65 mm;

6. Main burner work pressure: 276 kpa (adjustable);

7. Auxiliary combustion chamber pressure: 138 kpa (adjustable);

8. Supply voltage: AC220V±10%,50Hz;

9. Using power: 0.5 KW.

10. Combustion box dimension: L300*W300*H790(mm);

11. Equipment overall dimensions: (800 * 500 * 500) mm;

12. Combustion box adopts 304 steel plate, thickness of 1.2 MM;

13. Weight: 35 Kg
0.5KW Flammability Testing Equipment , Decomposition Smoke Density Test Apparatus
