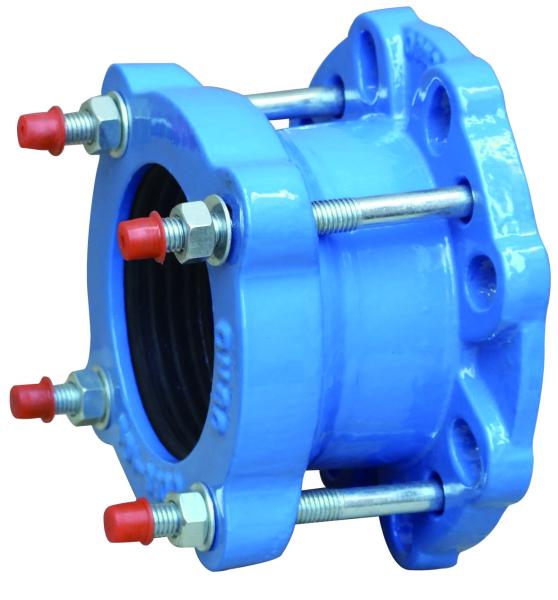

DN50 150Lbs Universal Ductile Iron Flange Adaptor for PVC Pipes
DN50 150Lbs Universal Ductile Iron Flange Adaptor for PVC Pipes
DN50 150Lbs Universal Ductile Iron Flange Adaptor for PVC Pipes
DN50 150Lbs Universal Ductile Iron Flange Adaptor for PVC Pipes
DN50 150Lbs Universal Ductile Iron Flange Adaptor for PVC Pipes
DN50 150Lbs Universal Ductile Iron Flange Adaptor for PVC Pipes
Specifications
Brand Name :
OEM
Model Number :
DN50-DN600
Place of Origin :
China
MOQ :
100pcs
Price :
USD3.5-USD1300.00
Payment Terms :
L/C, , D/P, T/T
Supply Ability :
50000 PCS/MONTH
Delivery Time :
30 days
Product name :
Universal Flange Adaptor
Body Material :
Ductile iron
Size :
DN50-DN600
Pressure :
PN10/16, 125/150Lbs
Media :
Water
Coating :
Fusion Epoxy
Suitable for :
PVC/AC Pipes
Color :
Blue or customized
Description

Universal Flange Adaptor

Connection for pipes in material steel pipes,ductile iron pipes, PVC and AC pipes etc

Working pressure: PN10/16

Maximum temperature -10℃ to +70℃

Suitable for portable water, neutral liquids and sewage

WRAS approved

Standard:

  • Coating: en30677
  • Test: EN12266-1

Feartures:

  • Wide tolerance range
  • Corrosion resistant construction
  • Angular deflection of ±4*

Options:

  • GD8.8, stainless steel, Dacromet bolt
  • Vatious coating
  • Seal: NBR etc
  • Ductile iron sleeve

Assembly Chart:

ITEM DESCRIPTION MATERIAL STANDARD
1 GASKET EPDM EN681-1
2 FASTNER GD4.8 COMMERCIAL
3 SLEEVE STEEL EN10025
4 END RING EN GJS400-15 EN1563

Packing & Delivery

Packed in carton boxes, suitable for delivery by sea or air.

Delivery in 30 -35 days after order confirmed.

Services:

We have more than 10 years experience in researching and developing plastic

valves.Excellent quality control is one of our main principles

Various style for each products and completely series pneumatic products for you to choose from

Sample order & small quantity order is ok

​We provide OEM service, accept customer label, develop the product with your drawings or samples

Any question, will be replyed within 24 hours

FAQ
Q1: Can you provide OEM service?
A: Yes, we work on OEM orders.
Q2: What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc...
Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will
recommend relevant products with details for your reference.
Q3: What is your delivery date?
A: The delivery date is about 25-30 days after receipt of payment.
Q4: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment or L/C.
Q5: Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can ask your courier to pick up from our office.
Q6: Transportation
a) Port of loading :Mainly ship from Tianjin mainland(China)
b) Shipping Services: by sea
