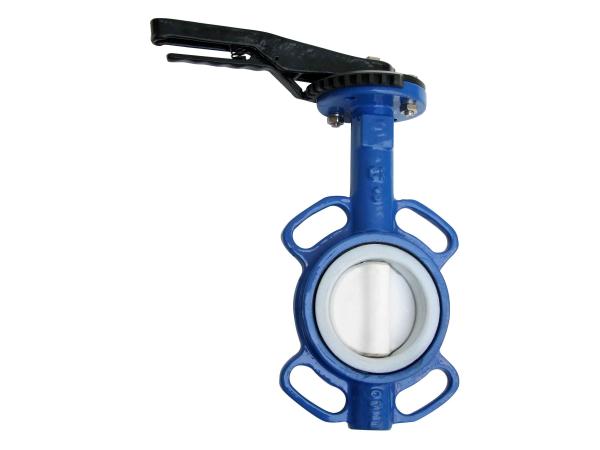

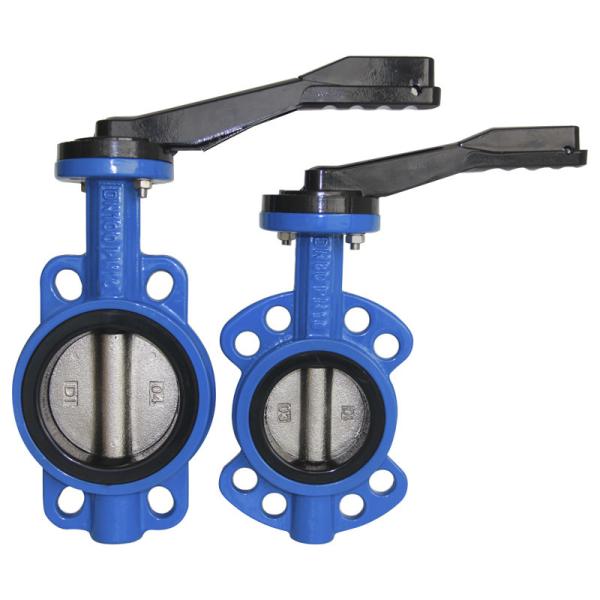

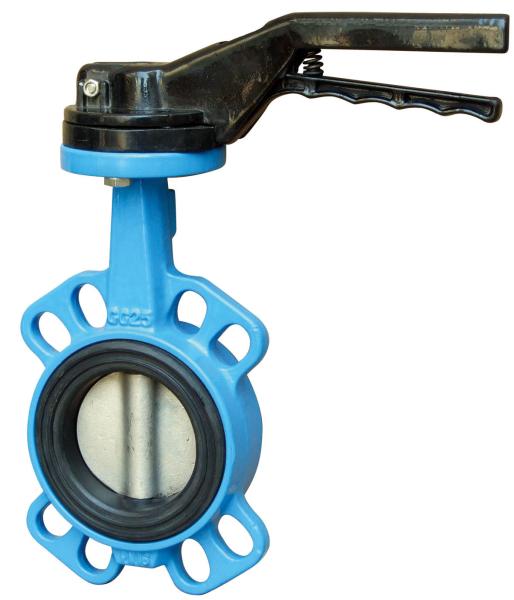

SS304 D71XPN16 Soft Seal Center Line Wafer Type Butterfly Check Valve
SS304 D71XPN16 Soft Seal Center Line Wafer Type Butterfly Check Valve
SS304 D71XPN16 Soft Seal Center Line Wafer Type Butterfly Check Valve
SS304 D71XPN16 Soft Seal Center Line Wafer Type Butterfly Check Valve
SS304 D71XPN16 Soft Seal Center Line Wafer Type Butterfly Check Valve
SS304 D71XPN16 Soft Seal Center Line Wafer Type Butterfly Check Valve
SS304 D71XPN16 Soft Seal Center Line Wafer Type Butterfly Check Valve
SS304 D71XPN16 Soft Seal Center Line Wafer Type Butterfly Check Valve
Specifications
Brand Name :
AHSUNVAL
Model Number :
Fig.2033
Certification :
ISO9001, CE
Place of Origin :
Tianjing
MOQ :
5PCS
Payment Terms :
D/A, D/P, Western Union, MoneyGram
Supply Ability :
500PCS/MONTH
Delivery Time :
10-30 WORK DAYS
Packaging Details :
EXPORT WOODEN CASES
Product name :
D71XPN16 Soft Seal Center Line Wafer Butterfly Valve With Lever Operator
Operator :
lever
Disc :
SS304
Standard :
ASME
Working pressure :
PN16
Medium :
Water Oil Gas
OEM :
Avaliable
Power :
Hydraulic
Test :
100% Leakage Testing
Color :
blue, customized
Description

D71XPN16 Soft Seal Center Line Wafer Butterfly Valve With Lever Operator

1, Product Description of Wafer Butterfly Valve:

Item Part Name Materials
1 Stem Zinc Plated Steel;
Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416;
2 Body Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200;
Ductile Cast Iron:
ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10;
3 Disc Ductile Cast Iron(Nickel plated):
ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10;
Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501;
AL-Bronze: ASTM B148 C95400;
4 Seat NBR, EPDM, Neoprene, PTFE, Viton;
5 End Cap Cast Iron: ASTM A126CL. B ,DIN1691 GG25, EN 1561 EN-GJL-200;
Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15,
6 Bolt Zinc Plated Steel;
7 Taper Pin Stainless Steel: ASTM A276 Type 304, Type 316; EN 1.4501;
8 O-Ring NBR, EPDM, Neoprene, Viton;
9 Bushing PTFE, Lubricated Bronze;
10 Key Carbon Steel


2, PACKAGEING & SHIPPING OF Wafer Butterfly Valve:

The normal package is wooden box(Size: L"W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.

1. Product packed by Standard Export Carton or Upon Requests of customer

2. We can offer products on time, shipping by ocean,by air or DHL, Fedex, TNT,UPS and so on

3, PRODUCTION PROCESS OF WAFER BUTTERFLY VALVE:

4, CERTIFICATIONS:

5, QUALITY CONTROL OF WAFER BUTTERFLY VALVE:

1) Before the order can be confirmed finally,we would strictly check the material,color,
dimension of the sample step by step.
2) We salesman ,also as a order follower,would trace every phase of production from the beginning.
3) We have a QC team ,every product would be checked by them before packed.
4) We would try our best to help clients solve problems when they occurred.

After Sales Service:

Any small problem happening in our products, will be solved at the most prompt time. We always offer relative technical support. Quick response, all your inquire will be replied within 24 hours.
