Visual Flow Indication Thread High Temp Sight Glass With Spinners And Flap
Visual Flow Indication Thread High Temp Sight Glass With Spinners And Flap
Visual Flow Indication Thread High Temp Sight Glass With Spinners And Flap
Visual Flow Indication Thread High Temp Sight Glass With Spinners And Flap
Specifications
Brand Name :
CXDLV
Model Number :
Sight Glass
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability :
500pcs/Mon
Delivery Time :
5~25 Work Days
Packaging Details :
Suitable Plywood Cases according to different valves structure
Body Material :
Stainless Steel
Pressure :
0.6Mpa
Structure :
Inside Spinner
Connection :
Thread
Valve Size :
DN15~DN200
Description

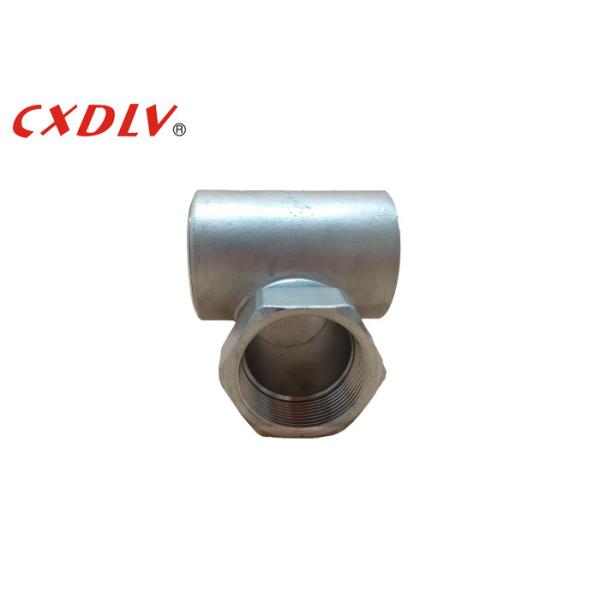

Visual Flow Indication Thread High Temp Sight Glass With Spinners And Flap


Product Feature

Thread Sight Glass

Body Material : Stainless Steel

Glass Material : Tempered Glass

Working Temperature(℃) : 0~180

Normal Pressure(MPa) : ＜0.6

Seat Material : NBR/PTFE

Connection : Thread

Allowed Sudden Change Temperature(℃) : ＜60

Sight glass, also called inspection glass, sight port or sight windows is described as a window in a pipe, or sidewalls of boilers, tanks, process chambers or silos for visually observing the presence, flow or the level of a medium. With this sight glass you can check / inspect a device or the entire process.


Technical Data

DN L H
20 90 65
25 110 65
32 135 75
40 135 80
50 155 85

Application

1. Utilities and power
2. Pharmaceuticals
3. Food and beverage
4. Biofuels
5. Wastewater treatment and management
6. And chemical/petrochemical

More Selection

Product Name Flow Sight Glass Indicator
Connection Flange Thread
Pressure DIN/JIS/ANSI 0.6Mpa
Material 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel

Why Choose us?

1. As a leading manufacturer for various kinds of Flange Industrial Valve, we have exported ball valve, butterfly valve, gate valve,globe valve,check valve and so on throughout the world.

2. More than 15 years' experiences in this field and CE,ISO, etc. certificated qualification and extreme standard let us keep very competitive in the current market.

3. Any order quantity is welcomed. There is ready stock for our regular & hot selling models(CF8 material valve).

And In time delivery will be ensured. Otherwise please claim compensation when it is delayed.

4. Of course,you can depend on high-quality service. We'll treat every email within 24 hours. (Usually much faster)

Visual Flow Indication Thread High Temp Sight Glass With Spinners And Flap
