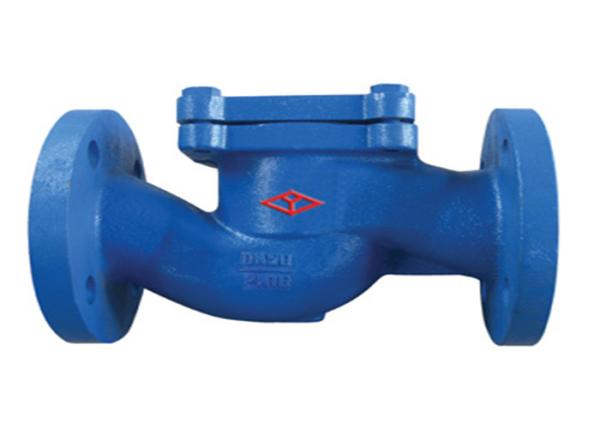

Cast Iron Leakproof Lift Check Valve For Oil Water Gas Anti Oxidation
Cast Iron Leakproof Lift Check Valve For Oil Water Gas Anti Oxidation
Cast Iron Leakproof Lift Check Valve For Oil Water Gas Anti Oxidation
Cast Iron Leakproof Lift Check Valve For Oil Water Gas Anti Oxidation
Specifications
Brand Name :
Y
Model Number :
H41H-16
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Lift Check Valve
Body material :
Cast Iron
Color :
Customer's Request ; Blue
Type :
lift
Medium :
Oil, Water, Gas
Temperature of media :
-10 To 200 ℃
Connection :
Flange Ends
Pressure :
1.0~1.6 MPA
Disc :
Grey Iron
Size :
DN15 To DN200
Description

Cast Iron DIN Standard Flange End Pressure 1.0/1.6 Mpa Lift Check Valve

Introduction

This valve is applicable to pipeline of water and steam medium which nominal pressure is ≤ 1.6 Mpa, It can be used to prevent homomallous opening and dosing of medium back wash.

Part material

Body GG25 /GGG50
Cover GG25/ GGG50
Seat ring SS420
Spring SS304
Disc+Disc Ring SS420/A105+SS420

Feature

Face to face DIN3202-F1
Flange end BS EN 1092-2
Norminal pressure 1.6 mpa
seal test (water) 1.8 mpa
Shell test (water) 2.4 mpa
Suitable temperature 0-200℃
Suitable medium water,steam oil
