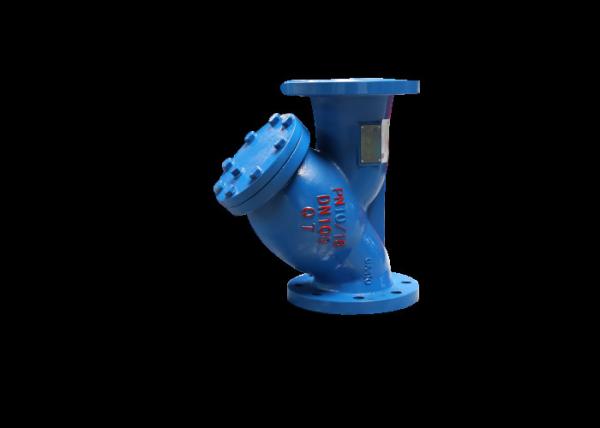

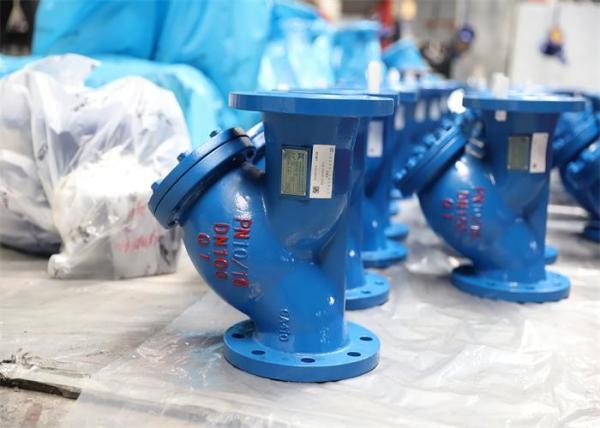

150mm 10k Standard Y Strainer Valve Cast Iron Material Water Steam Medium
150mm 10k Standard Y Strainer Valve Cast Iron Material Water Steam Medium
150mm 10k Standard Y Strainer Valve Cast Iron Material Water Steam Medium
150mm 10k Standard Y Strainer Valve Cast Iron Material Water Steam Medium
Specifications
Brand Name :
Y
Model Number :
GL41H-10K
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
1200*1100*1100 wooden box
Product name :
Y Strainer Valve
Color :
Customer's Request, Black
Type :
Y Type Strainer.
Standard :
KS standard
Pressure :
Medium Pressure, 10K
Temperature of media :
Medium Temperature
Body material :
grey iron ; ductile iron
Name :
filter valve
Description

10K Standard Cast Iron Material Water Steam Medium Y Strainer Valve

Usage:

Y-type filter is an indispensable filter device for conveying medium pipeline system. Y-type filter is usually installed at the inlet of pressure relief valve, pressure relief valve, water level valve or other equipment to remove impurities in the medium to protect the normal use of valves and equipment. Y type filter has advanced structure, low resistance, easy to discharge and so on. Y type filter applicable medium can be water, oil, gas.

Key performance specifications:

Type Pressure(MPa) Testing pressure MPa Suitable temperature℃ Suitable medium
Strength(water)
(KS)GL41H-10K 1.0 2.0 -10~200℃ Steam

Connection size

GL41H-10K (DN) Size
L B C D E F H
65 285 22 4×Φ19 Φ65±2 Φ140 Φ175 191
80 305 22 8×Φ19 Φ80±2 Φ150 Φ185 230
100 360 24 8×Φ19 Φ100±2 Φ175 Φ210 283
125 410 24 8×Φ23 Φ125±2 Φ210 Φ250 335
150 480 26 8×Φ23 Φ150±2 Φ240 Φ280 387

Principle of action

This product is composed of body, cover, filter and other parts, the medium from the import into, through the filter screen filter, from the outlet out

Precautions for storage, installation and use

1. This product is kept in a dry warehouse and is strictly prohibited to be stored in the open air.

2. Long-term storage, regular maintenance.

3. The product is usually installed in the pressure relief valve, pressure relief valve, hydraulic control valve or the use of medium equipment at the inlet end.

4. Bypass the pipelines for installing the product.

5. The product should be installed from the distance of the protected valve should be 6 ~ 10 times the diameter of the protected valve.

6. When installing, the medium flow must be consistent with the direction of the arrow on the body.

7. When installing, the cover is under the diameter axis.

8. Pipe and valve cavity should be cleaned before installation.

9. Operating conditions should be consistent with the requirements in the main performance specifications.

10. Cleaning or cleaning should be carried out when the inlet and outlet pressure difference is greater than 0.2MPa.
