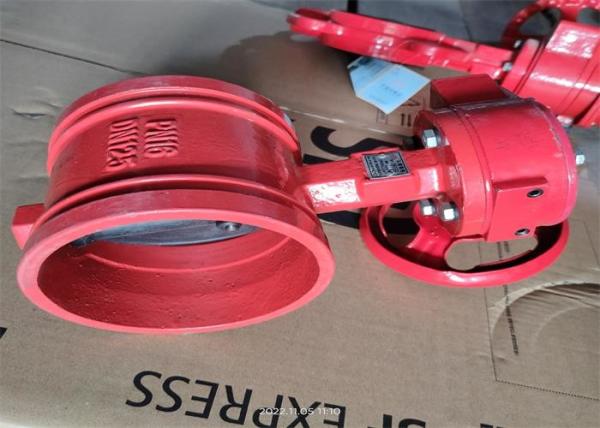

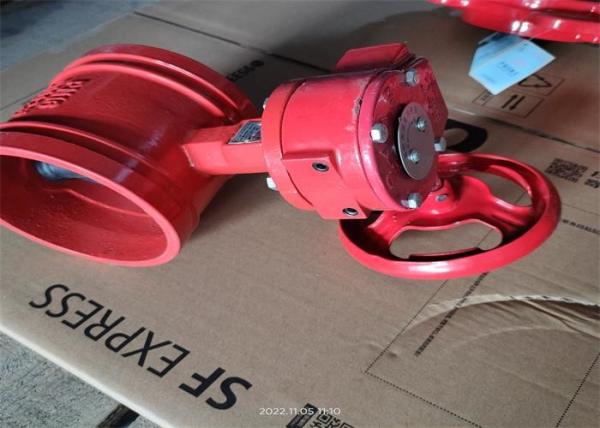

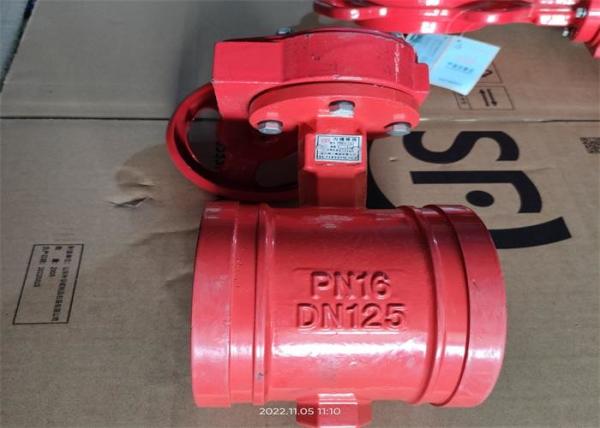

Turbine Groove Red Butterfly Valve Red Color Dn100 Mm
Turbine Groove Red Butterfly Valve Red Color Dn100 Mm
Turbine Groove Red Butterfly Valve Red Color Dn100 Mm
Turbine Groove Red Butterfly Valve Red Color Dn100 Mm
Turbine Groove Red Butterfly Valve Red Color Dn100 Mm
Turbine Groove Red Butterfly Valve Red Color Dn100 Mm
Specifications
Brand Name :
Y
Model Number :
D381X-16Q
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 PCS per year
Delivery Time :
5-8 work days
Packaging Details :
1200*1100*1100 wooden box
Product Name :
Fire Protection Valves
Valve color :
Red color
Working pressure :
1.6 mpa
Connect :
Trench connection
Working tempreature :
≤80℃
Body material :
ductile iron
Suitable medium :
water
Valve Name :
butterfly valve
Description

DN100 mm Butterfly Valve Turbine Groove Red Color Fire Protection Valves

Usage:

The valve is widely used in various pipelines of water supply and drainage, building fire protection and other systems, especially in the fire pipeline. The valve can be used on the pipeline or equipment with non corrosive medium to intercept, connect and regulate the flow

When the handle of the valve is rotated by 90 °, the valve shaft also rotates. The valve shaft drives the butterfly plate to rotate to open or close. The dial and the handle meet to adjust the flow

Connection size

Type

Size

DN

 Ф1 Ф2 T C
D381X-16Q 65 65.5 75.7 178 103
80 78.5 88.7 202 103
100 100 113.7 222 118
125 126 139.7 233 128
150 151.5 164.7 257 150
200 202.5 218.7 295 188

Material of main parts

Part Name Part material
Body Ductile iron
Disc Ductile iron +NBR
Stem Carbon steel

Matters needing attention

1. The valve is installed on the pipeline for opening and closing, and can also be used for adjusting and throttling.
2. The valve can be installed in any direction.
3. Pipe and valve cavity should be cleaned before installation.
4. The valve shall not be subjected to large external forces after installation.
5. The valve is installed on the pipeline that is closed for a long time, and should be opened and closed regularly.
6. When the local minimum temperature is lower than 4℃, insulation protection should be done;
7. It is strictly prohibited to install and use in pipelines that bear vibration or rapid changes in medium temperature.
8. The working condition shall be consistent with the requirements in the performance specification

Turbine Groove Red Butterfly Valve Red Color Dn100 MmTurbine Groove Red Butterfly Valve Red Color Dn100 MmTurbine Groove Red Butterfly Valve Red Color Dn100 MmTurbine Groove Red Butterfly Valve Red Color Dn100 MmTurbine Groove Red Butterfly Valve Red Color Dn100 Mm
