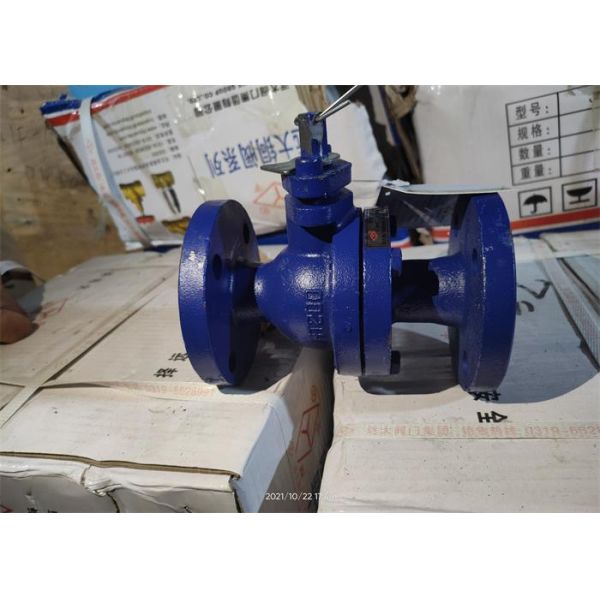

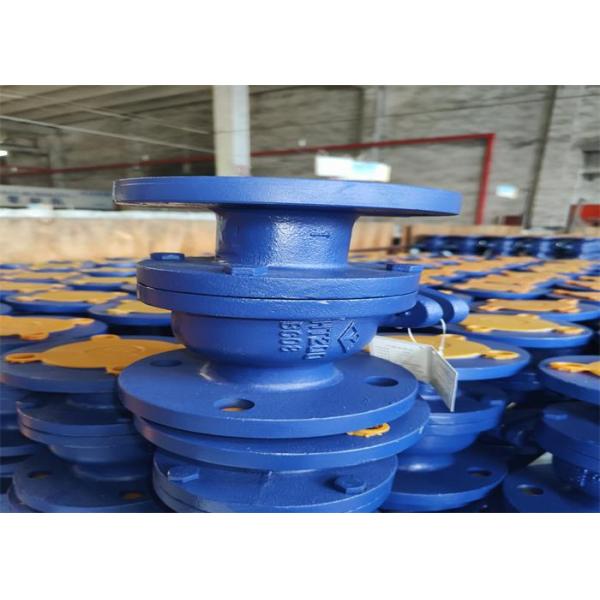

Size 80mm Grey Iron Material Water Medium Floating Ball Valve

Action principle

The valve is composed of valve body, ball, valve stem, packing gland, limit plate, handle and other parts, handle and pipeline axis parallel to the valve is in the open position, and pipe axis perpendicular to the closed position, by turning the handle 90 degrees to realize the opening and closing

Connection size

Main part material

The valve features

1. Simple structure, good manufacturing technology, flexible and rapid opening and closing, wide application range.

2. The stem adopts blowout prevention structure to increase the safety of ball valve.

3. The medium can flow from both sides of the valve body in any direction, can achieve the purpose of switching on or cutting off

Technical parameters

· Nominal pressure: 1.0/1.6MPa

· Nominal diameter: DN15-150mm

· Applicable temperature and medium:The main material is gray cast iron: applicable temperature 0℃ ~ 120℃, applicable medium: water; ≤0.2MPa saturated steam; ≤1.4MPa general quality oil.

· Design and manufacture: GB/T 15185 iron and copper ball valve

· Structure length: GB/T 12221 metal valve structure length

· Connecting end: GB/T 17241.6 integral cast iron flange

· Inspection and test: GB/T13927 industrial valve pressure test

Precautions for storage, installation and use

1. Simple structure, good manufacturing technology, flexible and rapid opening and closing, wide application range.

2. The stem adopts blowout prevention structure to increase the safety of ball valve.

3. The medium can flow from both sides of the valve body in any direction, can achieve the purpose of switching on or cutting off.

Precautions for storage, installation and use

1. This valve is kept in a dry warehouse, and is strictly prohibited to be stored in the open air.

2. Long-term storage should be maintained regularly.

3. The product can be installed in any position and any pipeline, and the working conditions should be consistent with the requirements in the performance specifications.

4. Before installation, the pressure test should be carried out to meet the requirements before installation.

5. The pipe and valve cavity should be cleaned before installation.

6. After installation, the product shall not be subjected to a large external force.

7. The direction of the handle should be consistent with the direction of the square groove of the stem.

8. When the local minimum temperature is lower than 4℃, insulation protection should be done; As the end valve, it should be heated with a pipe or jacket to prevent the temperature of the pipe wall from falling below 0℃.

9. It is strictly prohibited to install and use in the pipeline under vibration or rapid changes in medium temperature.
