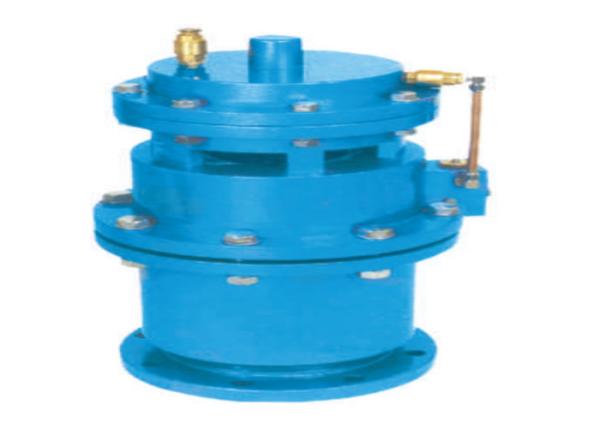

Iron WCB Flange Double Orifice Air Release Valve Wear Resistant
Iron WCB Flange Double Orifice Air Release Valve Wear Resistant
Specifications
Brand Name :
Y
Model Number :
QSP-1.0
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Flanged Air Valve
Connection :
flange
Color :
Blue / Customer's Request
Pressure :
Low Pressure
Media :
air
Type :
Double Port Exhaust Valve
Body material :
Iron / wcb
Port size :
DN15 ~ DN400
Description

Iron Total Pressure High Rate Double Port Exhaust Valve 1.0 Mpa Flanged Air Valve


Introduction


QSP full pressure high-speed double port exhaust valve is the most advanced cylinder exhaust valve in China. Its structural performance completely exceeds that of ordinary high-speed (double port) exhaust valve and composite double port exhaust valve. For the gas in the pipeline, it can be discharged continuously at high speed regardless of whether there are multiple sections of water column, gas column interphase, pressure or no pressure. The floating ball does not top on the exhaust port and there is no jamming problem, A small amount of gas can be discharged through micropores. In case of negative pressure in the pipeline, gas injection can be used to prevent gas pollution and buffer water hammer pressure rise, so as to eliminate the risk of commissioning of new pipeline, reduce the difficulty of exhaust, reduce the pipe explosion accident of urban pipe network, reduce resistance and energy saving, reduce pressure oscillation, and improve the safety and reliability of the whole water supply series and various equipment.

Installation instructions


1. The phase valve shall be installed vertically. Generally, a pit shall be built to protect and prevent freezing. 2. An underground valve with the same diameter shall be added between the valve and the connecting T-pipe.

Dimension


DNDD1D2Z-dLH
QSP-1.016.25.32.45.521951601354-18300620
801951601358-18500620
1002151801558-18500620
1502802402108-23280435
2003402952668-23620780
25039535031912-23620820
30044540037012-23620850
40056551548016-25700910



Iron WCB Flange Double Orifice Air Release Valve Wear Resistant
Iron WCB Flange Double Orifice Air Release Valve Wear ResistantIron WCB Flange Double Orifice Air Release Valve Wear Resistant
