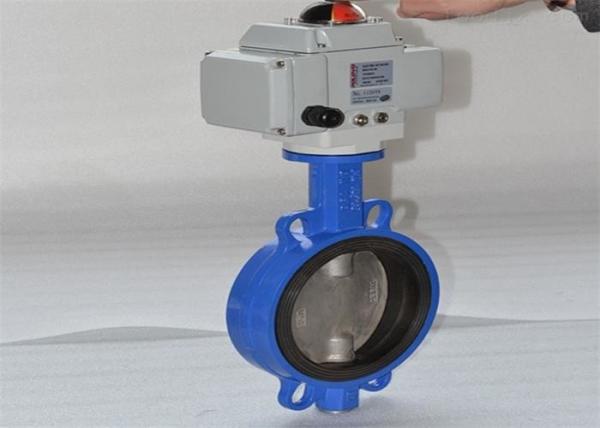

Wafer Ductile Cast Iron Butterfly Valve , 1.6 Mpa Electric Actuated Butterfly Valve
Wafer Ductile Cast Iron Butterfly Valve , 1.6 Mpa Electric Actuated Butterfly Valve
Specifications
Brand Name :
Y
Model Number :
D971X-16Q
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Wafer Butterfly Valve
Body material :
Ductile Iron/Cast Iron GGG50
Port size :
DN50-DN800
Standard :
DIN,ANSI,API,JIS,BS，GB
Color :
BLUE,customized
Connection :
wafer / flanged
Working pressure :
1.0-1.6Mpa (10-25bar)
Medium :
water
Description

Ductile Iron Materials Electric Power Pressure 1.6 Mpa Wafer Butterfly Valve

Usage

The valve is widely used in various pipelines of water supply and drainage, building fire protection and other systems, especially in fire protection pipelines. The valve can be used in pipelines or equipment with non corrosive media for intercepting, connecting and regulating flow.

Structure and action principle

1. The valve is a wafer type connection. The valve is composed of valve body, disc plate, valve shaft, electric device and other parts.

2. When the electric device is operated, the valve shaft also rotates. The valve shaft drives the butterfly plate to rotate to open or close. Due to the characteristics of the electric device, the flow can be adjusted arbitrarily

attention

1. The valve is installed on the pipeline for opening and closing, regulation and throttling.

2. The valve can be installed in any direction.

3. Clean the inner cavity of pipes and valves before installation.

4. The valve shall not be subject to large external force after installation.

5. The valve is installed on the long-term closed pipeline, and the opening and closing action shall be performed regularly.

6. When the local minimum temperature is lower than 4 ℃, thermal insulation protection shall be provided; When it is used as the end valve, the companion pipe or jacket shall be used for heating to prevent the pipe wall temperature from being lower than 0 ℃.

7. It is strictly prohibited to install and use it on the pipeline bearing vibration or rapid change of medium temperature.

8. The operating conditions shall be consistent with the requirements in the performance specification

Dimensions

型号

公称通径

DN

 尺寸
Ф Z-Φd B
D971X-10/16 50 125 4-Φ18 43
65 145 4-Φ18 46
80 160 8-Φ18 46
100 180 4-Φ18 52
125 210 4-Φ18 56
150 240 4-Φ23 56
200 295 4-Φ23 60
250 355 4-Φ25 68
300 410 4-Φ30 78
350 470 4-Φ30 78
400 515 4-Φ31 88
450 565 4-Φ31 106
500 620 4-Φ31 132
600 725 4-Φ34 154
700 840 4-M27 165
800 952 4-M30 190

Wafer Ductile Cast Iron Butterfly Valve , 1.6 Mpa Electric Actuated Butterfly ValveWafer Ductile Cast Iron Butterfly Valve , 1.6 Mpa Electric Actuated Butterfly ValveWafer Ductile Cast Iron Butterfly Valve , 1.6 Mpa Electric Actuated Butterfly ValveWafer Ductile Cast Iron Butterfly Valve , 1.6 Mpa Electric Actuated Butterfly Valve
