Ductile Iron Grooved Butterfly Valve , Card Slot Worm Gear Butterfly Valve
Ductile Iron Grooved Butterfly Valve , Card Slot Worm Gear Butterfly Valve
Specifications
Brand Name :
Y
Model Number :
D381X-16Q
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Fire Protection Valves
Power :
Worm
connection :
card slot
seal :
NBR /EPDM
working pressure :
1.0~1.6mpa
temperature :
0~80℃
medium :
water
color :
Red
Description

Fire Card Slot Worm Gear Butterfly Valve 1.6 Mpa Fire Protection Valves

Introduction

The grooved butterfly valve adopts worm gear and worm drive, and then the cam rotates to press or release the contact on the signal device according to the predetermined position, and the corresponding "on" and "off" electrical signals are output to display the opening and closing status of the butterfly valve. Grooved butterfly valves are divided into handle grooved butterfly valves and turbine grooved butterfly valves.

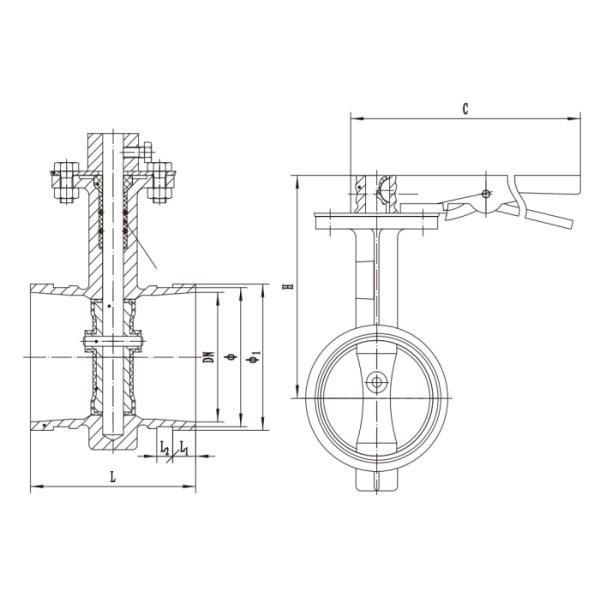

Dimension

DN L L1 L2 ф ф1 H c
65 103±2 14.5 9.5 71.6 76 178 200
80 103±2 14.5 9.5 84.6 89 202 245
100 118±2 16 9.5 109.6 114 222 280
125 128±2 16 9.5 135.6 140 233 280
150 150±2 16 9.5 160.6 165 257 280
1200 188±2 19 13 214 219 295 320

Part name and material

Body Ductile Iron
Disc Ductile Iron /ss
Stem ss
Handle steel
seat EPDM / NBR

Feature

Nominal pressure 1.6mpa
Shell test 2.4 mpa (water)
Seal Test 0.6mpa (gas)
Seal Test 1.76 mpa (water)
Suitable temperature ≤80℃
Suitable medium water
butterfly plate corner 90°
