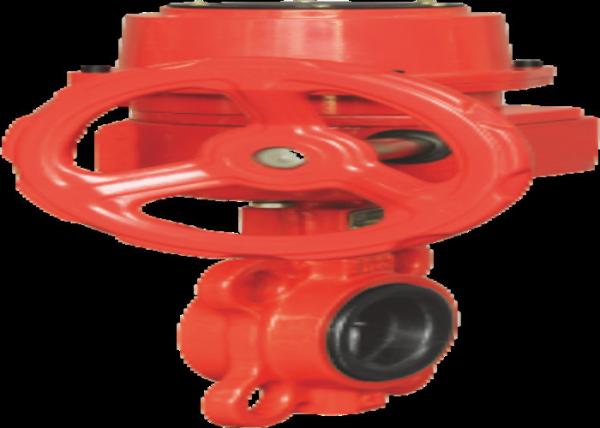

Worm Gear Fire Protection Valves Wafer Butterfly For Fire Fighting 1.6mpa
Worm Gear Fire Protection Valves Wafer Butterfly For Fire Fighting 1.6mpa
Specifications
Brand Name :
Y
Model Number :
XD371X-16Q
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
product name :
Fire Protection Valves
Body material :
Ductile Iron
connection :
wafer
suitable temperature :
0~80 ℃
color :
Red
pressure :
1.0-1.6mpa
medium :
water
power :
worm
Description

Fire Signal Worm Gear Wafer Butterfly Valve 1.6mpa Fire Protection Valves

Usage

This series of alves are mainly used for remote monitoring, which can prevent the valve from being closed or open by mistake, which is to keep the valvealways open or closed. The opening of valve can also be monitored immediately.

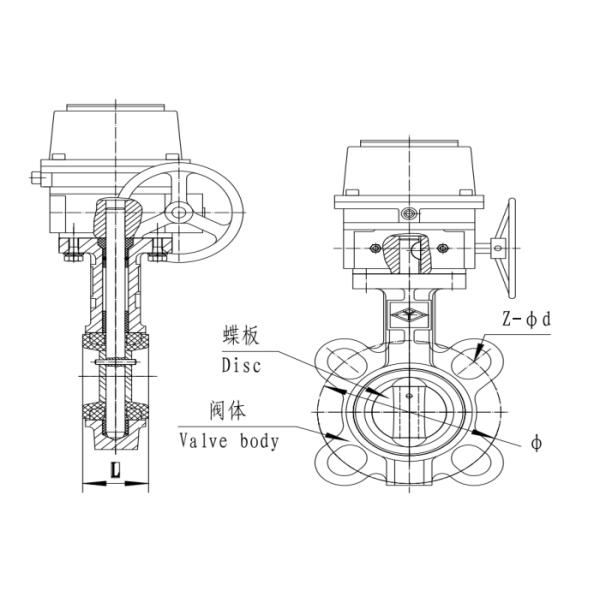

Dimension

DN L ф z-d
50 43 125 4-23
65 46 145 4-23
80 46 160 4-23
100 52 180 4-23
125 56 210 4-23
150 56 240 4-26
200 60 295 4-26

main part and material

Body QT450
Seat NBR
Disc QT450
Valve shaft 20Cr13
O-ring EPDM
Pressing plate Q235+Chrome plating
