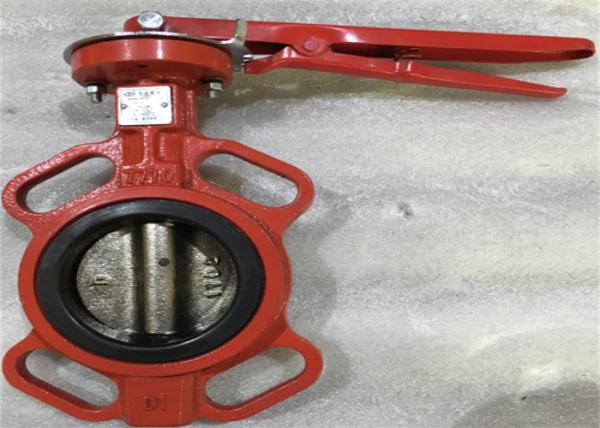

Handle Butterfly Fire Protection Valves Anti Corrosion 1.6mpa
Handle Butterfly Fire Protection Valves Anti Corrosion 1.6mpa
Specifications
Brand Name :
Y
Model Number :
D71X-16Q
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Fire Protection Valves
connection :
wafer
power :
handel
color :
red / customer's request
temperature :
≤80℃
pressure :
1.0~1.6mpa
body material :
Iron
medium :
water
Description

Handle Fire Wafer Line Butterfly Valve 1.6mpa Fire Protection Valves

Introduction

The butterfly plate of the handle butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis with a rotation angle of 0 ° - 90 °. When it rotates to 90 °, the valve is fully open. This valve is generally installed horizontally

Dimension

DN ф H L Z-фd B
DN40 110 160 234 4-ф21 43.00
DN50 125 170 234.00 4-ф23 43.00
DN65 145 178 261.00 4-ф23 46.00
DN80 160 202 261.00 4-ф23 46.00
DN100 180 222 259.50 4-ф23 52.00
DN125 210 233 312.00 4-ф23 56.00
DN150 240 257 312 4-ф26 56
DN200 295 295 360 4-ф26 60

Part name and material

Body Iron
Seat NBR
Disc Ductile iron
Stem Steel stainless steel

Handle Butterfly Fire Protection Valves Anti Corrosion 1.6mpaHandle Butterfly Fire Protection Valves Anti Corrosion 1.6mpaHandle Butterfly Fire Protection Valves Anti Corrosion 1.6mpa
