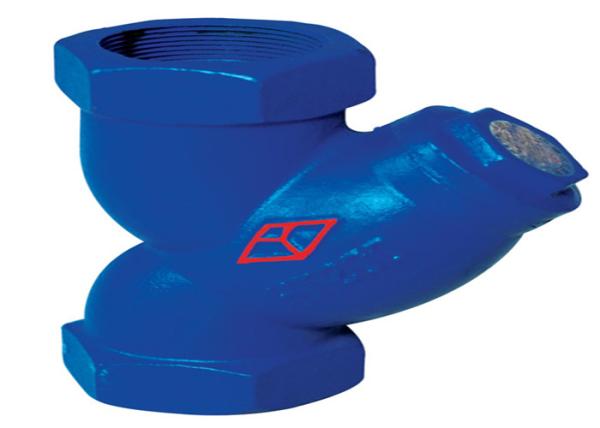

Leakproof 1.6 Mpa Threaded Y Strainer , Anti Corrosion DIN Y Type Strainer
Leakproof 1.6 Mpa Threaded Y Strainer , Anti Corrosion DIN Y Type Strainer
Leakproof 1.6 Mpa Threaded Y Strainer , Anti Corrosion DIN Y Type Strainer
Leakproof 1.6 Mpa Threaded Y Strainer , Anti Corrosion DIN Y Type Strainer
Specifications
Brand Name :
Y
Model Number :
GL11H-16
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Y Strainer Valve
Connection :
Threaded
Body material :
Cast iron
Size :
DN15-DN50
Color :
blue,Customer's Request
Type :
Y Type Strainer.
Pressure :
Medium Pressure,Low Pressure
Temperature of media :
Medium Temperature,Normal Temperature
Medium :
water, oil, steam
Screen :
SS304
Description

Cast Iron Material Pressure 1.6 Mpa DIN Standard Threaded Y Strainer Valve

Introduction

Y-type filter is an indispensable filtering device for the pipeline system conveying medium. Y-type filter is usually installed at the inlet of pressure reducing valve, pressure relief valve, constant water level valve or other equipment to remove impurities in the medium and protect the normal use of valves and equipment. Y-type filter has the characteristics of advanced structure, low resistance and convenient sewage discharge. The applicable media of Y-type filter can be water, oil and gas. Generally, the water supply network is 18 ~ 30 mesh, the ventilation network is 10 ~ 100 mesh, and the oil supply network is 100 ~ 480 mesh.

Feature

Norminal pressure(MPA) 1.6
Shell (Water) 2.4Mpa
Temperature -10℃ to 200℃
suitable medium water oil steam

Dimension

DN L H
15 85 66
20 100 66
25 120 75
32 140 77
40 160 90
50 250 98

Part name and material

Part Name Material
Body GG25
Screen SS304
Gasket Non-asbestos
Bonnet GG25

Leakproof 1.6 Mpa Threaded Y Strainer , Anti Corrosion DIN Y Type Strainer

Leakproof 1.6 Mpa Threaded Y Strainer , Anti Corrosion DIN Y Type StrainerLeakproof 1.6 Mpa Threaded Y Strainer , Anti Corrosion DIN Y Type Strainer
