Wear Resistant Trunnion Type Ball Valve , Turbine A216 WCB Ball Valve
Wear Resistant Trunnion Type Ball Valve , Turbine A216 WCB Ball Valve
Wear Resistant Trunnion Type Ball Valve , Turbine A216 WCB Ball Valve
Wear Resistant Trunnion Type Ball Valve , Turbine A216 WCB Ball Valve
Specifications
Brand Name :
Y
Model Number :
Q341F
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Floating Ball Valve
Material :
A216 WCB
Color :
Customer's Request
Type :
Ball Valve
Connection :
flange
Power :
turbine
seat :
A105
stem :
a182 f6a
Pressure :
Medium Pressure, High Pressure
Medium :
Water
Description

API Cast Steel Plange End 150 Class Trunnion Type Floating Ball Valve

Introduction

Worm gear flange ball valve and gate valve belong to the same type of valve. The difference is that its closing part is a sphere. The sphere rotates around the center line of the valve body to open and close. Ball valve is mainly used to cut off, distribute and change the flow direction of medium in the pipeline.

working principle

The valve is unblocked or blocked by rotating the valve. The ball valve has the advantages of light switch and small volume. It can be made into a large diameter, reliable sealing, simple structure and convenient maintenance. The sealing surface and spherical surface are often closed, which is not easy to be eroded by the medium. It has been widely used in various industries.

Worm gear flange ball valve is mainly used to cut off, distribute and change the flow direction of medium in the pipeline. Ball valve is a new type of valve widely used in recent years.

Test Pressure

Test Item Shell Test Seal Test Back Seal Test Air Seal Test
Medium(MPa) Water(MPa) Air(MPa)
Pressure (Class) 150 3.1 2.2 2.2 0.5-0.7
300 7.8 5.6 5.6
600 15.3 11.2 11.2
900 23.1 16.8 16.8

Basic standard

Flange end ANSI 16.10
Face to face ANSI B 16.10
Design and manufacture API 6D BS5351

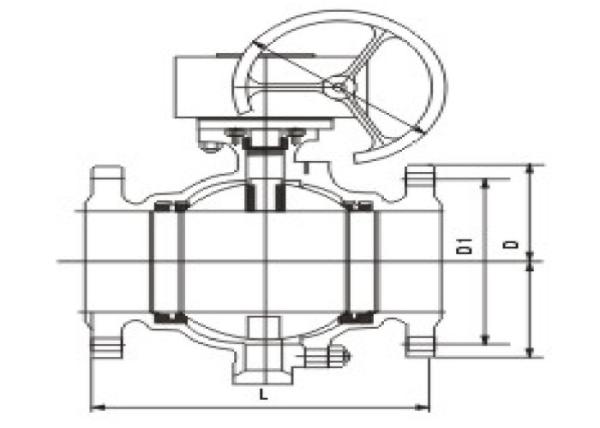

Dimension

Classi 50 Class300 Class600 Class900
DN NPS L D D1 DN NPS L D D1 DN NPS L n D1 DN NPS L c D1
RF RW RF RW RF RTJ RW RTJ RF RW
100 4 229 305 229 190.5 100 4 305 305 254 200 50 2 292 295 292 165 127 50 2 366 371 368 216 165.1
125 5 356 381 254 216 125 5 381 361 279 235 65 2 1/2 330 333 330 190 149 65 21/2 419 422 419 244 190.5
150 6 394 457 279 241.5 150 6 403 457 318 270 80 3 356 359 356 210 168 80 3 381 384 381 241 190.5
200 8 457 521 343 298.5 200 8 502 521 381 330 100 4 432 435 432 273 216 100 4 457 460 457 202 235
250 10 533 559 408 362 250 10 568 559 4-C 387.5 125 5 508 511 508 330 266.5 125 5 550 902 559 349 279.4
300 12 610 835 483 432 300 12 648 635 521 451 150 6 550 562 559 356 292 150 6 610 613 610 381 317.5
350 14 695 752 533 476 350 14 762 702 584 514.5 200 8 660 664 660 419 349 200 8 737 740 737 470 393.7
400 16 762 838 507 540 400 16 836 838 648 571.5 350 10 787 791 787 508 432 250 10 836 841 838 546 469.9
450 18 864 914 635 578 460 18 914 914 711 628.5 300 12 838 841 838 559 489 300 12 965 968 965 610 533.4
500 10 914 g 1 699 635 500 20 991 991 775 666 350 14 889 892 889 603 527 350 14 1029 1038 1028 640 558.8
600 24 1007 1143 813 749.5 600 24 1143 1143 914 813 400 16 991 994 991 686 603 400 16 1130 1140 1130 705 616
650 20 1143 1246 796 412 650 25 1245 1245 867 803.5 450 18 1092 1095 1092 743 654
700 2B 1245 1346 837 795.5 700 28 1346 1346 921 857 500 20 1194 1200 1194 813 724
750 30 1295 1397 887 846 750 30 1397 1397 991 921 600 24 1397 1407 1397 940 838
800 32 1372 1524 941 900 800 32 1524 1524 1054 978
900 36 1524 1727 1057 1009.5 900 36 1727 1727 1172 1089
