200X Pressure Reducing Water Conservancy Valve Ductile Iron Anti Erosion
200X Pressure Reducing Water Conservancy Valve Ductile Iron Anti Erosion
Specifications
Brand Name :
Y
Model Number :
200X-16Q
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Water Conservancy Valve
Body material :
Ductile Iron
pressure :
1.6 mpa
Color :
customer's request
Size :
DN50 to DN250
Temperature :
-10 to 80℃
medium :
water
connect :
flange
Description

200X Pressure Reducing Valve Ductile Iron Flange End Water Conservancy Valve

Usage

The product is the ideal product for the life water, fire water and industrial water supply system.

Introduction

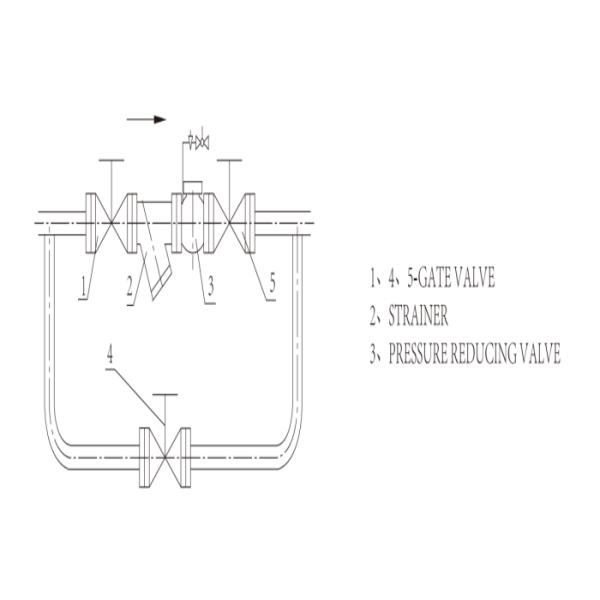

200X pressure reducing valve is a valve used in the parallel water supply system of fire water and domestic water to adjust the water supply direction.

In case of fire, fire fighting is in urgent need of a large amount of water, and domestic water shall be cut off immediately to ensure sufficient fire water; When the pressure of fire water is reduced, the valve will automatically open and be normally open to restore domestic water supply. The valve makes it unnecessary for the system to set up a separate fire water supply network, which greatly saves the construction cost and water consumption. The valve has the advantages of high control sensitivity, safety and reliability, simple commissioning and long service life

Main parts and materials

Body Ductile Iron
Bonnet Ductile Iron
Stem 2Cr13
Pressure reducing valve Brass/304
Needle Valve Brass /304
Ball Valve Brass /304

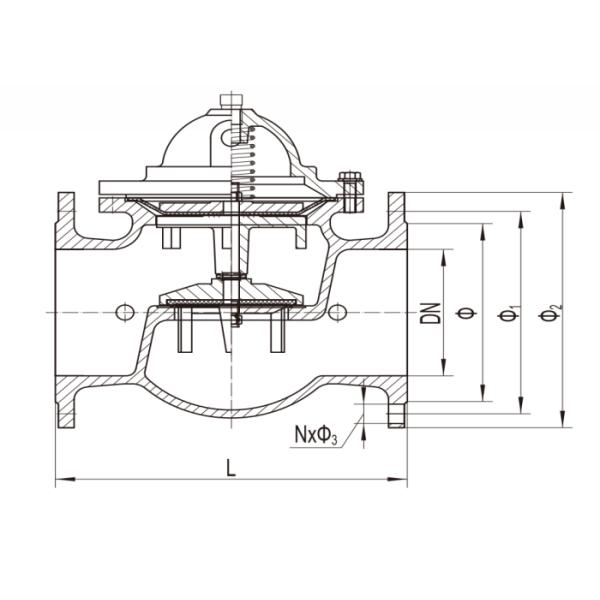

Dimension

DN

L

ф

ф1

ф2

N-ф3

50

203

99

125

165

4-ф19

65

216

118

145

185

4-ф19

80

241

132

160

200

8-ф19

100

292

156

180

220

8-ф19

125

330

184

210

250

8-ф19

150

356

211

240

285

8-ф23

200

458

266

295

340

12-ф23

250

530

319

355

405

12-ф28
