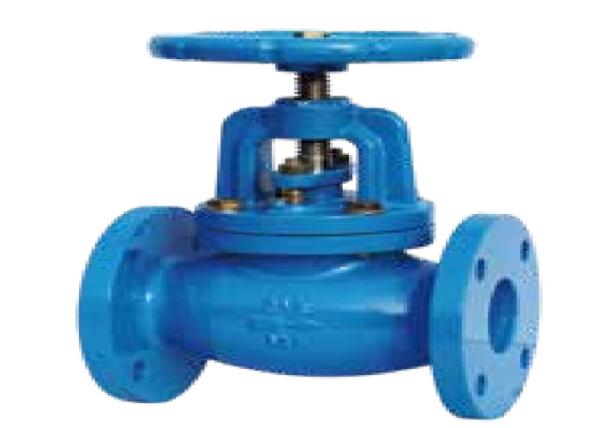

Rustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe Valve
Rustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe Valve
Rustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe Valve
Rustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe Valve
Rustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe Valve
Rustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe Valve
Specifications
Brand Name :
Y
Model Number :
J41T-125LB/250LB
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
80000 PCS Per Year
Delivery Time :
10 Work days
Packaging Details :
Fumigation-Free Wooden Case 1120*1100*1100mm
Product name :
Flanged Globe Valve
Pressure :
Medium Pressure
Power :
Wheel Hand Operated
Standard :
ANSI, API
Body material :
Iron
Size :
2" To 10"
Working temperature :
-10℃ To 150 ℃
Media :
Water, Oil, Steam
Color :
Black
Connection :
Flanged, RF
Description

API 125LB Black Or Blue Cast Iron Wheel Flanged Globe Valve

Introduction


American Standard stop valve and flange stop valve belong to the same type of valve. The closing part is a valve disc, and the valve stem rotates around the center

Standard

Basic standard
Flange endASME/ANSI B16.1
Face to faceASME B16.10
TestMSSSP-70

Usage:


The series of valves is widely used for opening and closing pipes with nominal pressure less than 125lb

Feature

Size:2 " -12"
Norminal pressure(PSI)125/250
Suitbk temperature<100°C
Seal test1.41mpa/1.38MPa
Shell test2.46mpa/6.0MPa
Suitable medium:steam,water

Main parts and materials

part namebodybody sealing ringdisc ringdiscstempackinggasketboltpacking glandbonnetwheelwheel nut
materialHT200ZCuSn5Pb5Zn5ZCuSn5Pb5Zn5HT2002Cr13graphite08+ graphite35QT450-10HT200HT200Q235

Dimensiongs

SizeDNLDD1bZxфHminHmaxф
2"50203152120.515.94xф19231248.8180
2-1/2 "65216178139.517.54xф19241.5262.5180
3"80241191152.519.14xф19258.7289.5180
4"100292229190.523.98xф19310.8351.6250
5 "12533025421623.98xф22350.7405250
6"150356279241.525.48xф22394.7462.5300
8"200495343298.528.68xф22461.5554.5360
10"25062240636230.212xф25541627.5400


Advantages


1. The fluid resistance is small, and its resistance coefficient is equal to that of the pipe section with the same length.
2. Simple structure, small volume and light weight.
3. It is tight and reliable. At present, the sealing surface of gate valve is widely made of plastic with good sealing performance, and has been widely used in vacuum system.
4. It is easy to operate and open and close quickly. It only needs to rotate 90 ° from full open to full close, which is convenient for remote control.
5. The maintenance is convenient, the structure of the gate valve is simple, the sealing ring is generally movable, and the disassembly and replacement are relatively convenient.
6. When fully open or fully closed, the sealing surface of the ball and valve seat shall be isolated from the medium. When the medium passes through, it will not cause the erosion of the valve sealing surface.
7. It has a wide range of application. The diameter ranges from a few millimeters to a few meters. It can be applied from high vacuum to high pressure. When the ball rotates 90 degrees, it should be spherical at the inlet and outlet, so as to cut off the flow


Rustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe ValveRustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe ValveRustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe ValveRustproof 125LB 2 Inch Globe Valve , Cast Iron Wheel API Globe Valve
