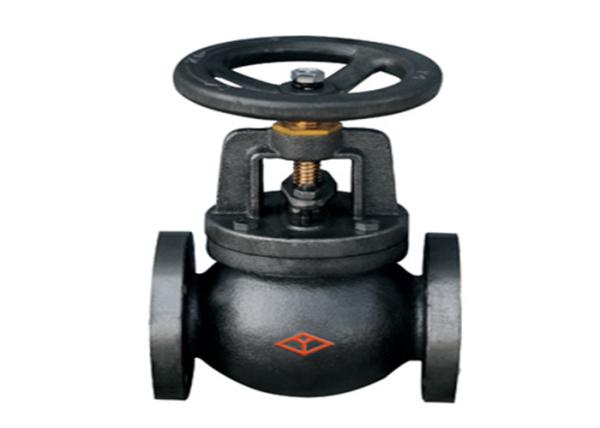

JIS KS Cast Iron Flanged Globe Valve Black Medium Water Steam Electric
JIS KS Cast Iron Flanged Globe Valve Black Medium Water Steam Electric
JIS KS Cast Iron Flanged Globe Valve Black Medium Water Steam Electric
JIS KS Cast Iron Flanged Globe Valve Black Medium Water Steam Electric
Specifications
Brand Name :
Y
Model Number :
J41T
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 PCS per year
Delivery Time :
5-8 work days
Packaging Details :
wooden box 1200*1100*1100
Product name :
Flanged Globe Valve
Body material :
Iron
Medium :
water/steam
Connection :
Flange Ends
Color :
Black / Customized
Valve type :
Globe valve
Standard :
KS/JIS
modo :
wheel
stem material :
stainless steel
Pressure :
Medium Pressure
Description

JIS/ KS Cast Iron Black Color Medium Water Or Steam Flanged Globe Valve

Introduction

Turn on or turn off the pipelines where the working nominal pressure is ≤1.6 MPA . The applicable medium of cast iron stop valve is: water, oil, steam, acid medium, etc. The operation modes are: manual, gear drive, electric, pneumatic, etc

Advantage

1. The utility model has the advantages of simple structure and convenient manufacture and maintenance.

2. Small working stroke and short opening and closing time.

3. Good sealing performance, small friction between sealing surfaces and long service life.

Dimensions

DN L D D1 b Zxфd Hmax Hmin ф
50 200 155 120 20 4xф19 238 221 180
65 220 175 140 22 4xф19 265 239 190
80 240 185 150 22 8xф19 300 269 210
100 290 210 175 24 8xф19 353 312 240
125 360 250 210 24 8xф23 413.5 353.5 260
150 410 280 240 26 8xф23 483 393 270
200 500 330 290 26 12xф23 557.5 463.5 350

JIS KS Cast Iron Flanged Globe Valve Black Medium Water Steam ElectricJIS KS Cast Iron Flanged Globe Valve Black Medium Water Steam Electric
