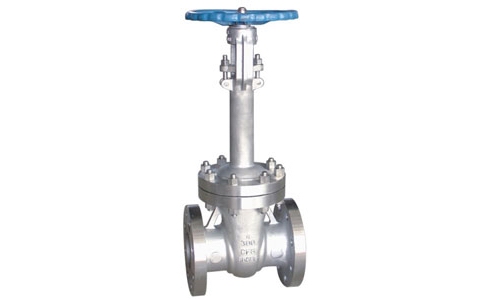

Expanding Bolted Bonnet Flanged Gate Valve Flexible Wedge ANSI 300 LB
Expanding Bolted Bonnet Flanged Gate Valve Flexible Wedge ANSI 300 LB
Specifications
Brand Name :
TEYI
Model Number :
ZL41H
Certification :
ISO/CE/API/SGS/TS
Place of Origin :
Zhejiang, China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
T/T; L/C,Western Union
Supply Ability :
500pcs per month
Delivery Time :
7-15 working days after received payment
Packaging Details :
Packed in woven bag firstly, and then reinforced with wooden case for outer packing
Product Name :
Flanged Gate Valve
Size :
2inch to 32inch
Pressure :
Class300LB
Face to Face :
ASME B16.10
Flange End :
ASME B16.5 / B16.47
Inspection Standard :
API6D/ API598
Working Temp. :
-196 ℃ to 550 ℃
Medium :
Water, Oil, Gas, Steam, H2SO
Description

Expanding Bolted Bonnet Flanged Gate Valve Flexible Wedge ANSI 300 LB

Description:

Extended Bonnet Gate Valves can be installed under ground, but it can be operated on the ground. and it can be used in low temperature environment.

1 . Body: Body is cast with low-temperature material, for example, LCB or Stainless Steel.

Flanged End cast steel gate valves are vaailable in flanged end and butt weld ends. All flanged and Butt Welding end valves are designed to conform to ANSI B16.5 and ANSI B16.25

2 . Bonnet: Extended Bonnet as per requirement. or Extended Yoke as per requirement.

3 . Seat Ring: Seat rings are seal welded to eliminate leak path bhind rings for long trouble-free service. The Surfaces are precision ground to fit accurately with the disc.

4 . Wedge: One piece flexivle wedge provides accurate alignment of mating seating surfaces , so the valve can absorb piping strains without leakage. Valves are also furnished with solid wege that have proved successful in millions of applications.

5 . Stem: The T-head , disc-stem connection prevents lateral strain on the stem for smooth, easy operation.

6 . Packing: Packing contains corrosion inhibitor to avoid stem pitting. Stuffing box is deep, assuring long packing life.

7 . Gland: Gland is two piece ball type which exerts even pressure on the packing without binding the stem.

8 . Handwheel: Can also be supplied with gear box, Pneumatic and motor operators.

Technical Specifications:

  • Design & Manufacture standard: API 600, API 6D
  • Pressure & Temperature standard: ASME B16.34
  • Face to face dimension standard: ASME B16.10
  • Flange standard: ASME B16.5, ASME B16.47
  • Test & Inspect: API 598
Material of main Parts Body

A216 WCB/WCC/WCA

A352 LCB/LCC/LC2/LC3
Wedge Carbon steel or Stainless Steel
Stem A182 F6a or F304/F316
Seat HF or STL
Backseat Bushing A276 410 or Stainless Steel
Packing Graphite+SS304/SS316
Bolt /Nut A193 B7/ A194 2H
Operation Handwheel, Chain wheel, Gear Box, Pneumatic, Motor,Hydraulic
Working Temperature -29 to 425 Celsius degree
Working Medium Water, Oil, Gas, H2SO, Steam

Dimmension:

Expanding Bolted Bonnet Flanged Gate Valve Flexible Wedge ANSI 300 LB Expanding Bolted Bonnet Flanged Gate Valve Flexible Wedge ANSI 300 LB

NPS L d HW

HG

 DW DG Weigh(Kg)
inch mm RF RTJ BW HW GO
2 50 216 232 216 51 420 — 200 —
21/2 65 241 257 241 64 446 — 200 — 30 —
3 80 283 298 283 76 537 — 250 — 48 —
4 100 305 321 305 102 619 650 280 310 73 100
5 125 381 397 381 127 722 750 300 310 99 126
6 150 403 419 403 152 806 835 350 310 130 186
8 200 419 435 419 203 1000 1030 400 310 208 235
10 250 457 473 457 254 1240 1280 450 310 334 386
12 300 502 518 502 305 1425 1460 500 310 450 502
14 350 762 778 762 337 1585 1620 600 460 704 756
16 400 838 854 838 387 1790 1830 500 460 923 965
18 450 914 930 914 438 1960 2000 650 460 1131 1224
20 500 991 1010 991 489 2158 2220 750 460 1345 1400
24 600 1143 1165 1143 591 2576 2620 900 600 2122 2385
26 650 1245 1270 1245 633 — 2850 — 600 — 3000
28 700 1346 1372 1346 684 — 3080 — 600 — 3300
30 750 1397 1422 1397 735 — 3180 — 600 — 3550
32 800 1524 1553 1524 779 — 3300 — 600 — 4400
34 850 1626 1654 1626 830 — 3550 — 600 — 5200
36 900 1727 1756 1727 874 — 3760 — 600 — 6050
