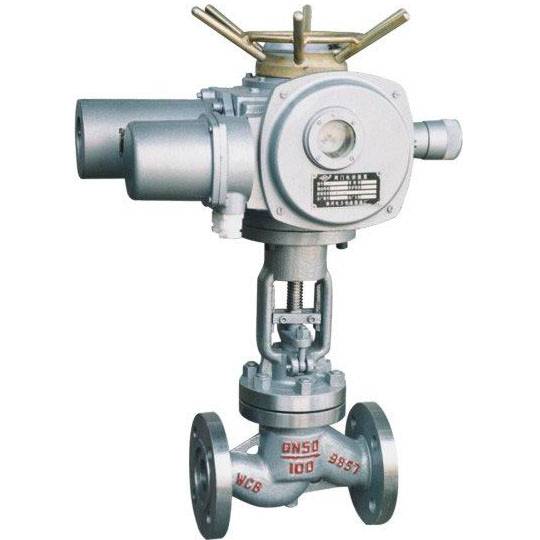

OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam
OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam
OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam
OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam
OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam
OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam
OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam
OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam
Specifications
Brand Name :
TEYI/OEM
Model Number :
J41H
Certification :
CE/API/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
T/T or L/C at sight, Westm Union
Supply Ability :
500pcs per month
Delivery Time :
7-15 working days after received payment
Packaging Details :
Packed in woven bag firstly, and then reinforced with wooden case for outer packing
Product Name :
Flanged Globe Valve
Size :
DN50 to DN400
Pressure :
PN16 to PN40
Face to Face :
DIN3202
Flange End :
DIN2543-DIN2546
Design Standard :
DIN3356
Working Temp. :
-29 to 425 ℃
Inspection Standard :
DIN3230
Description

OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam ​

Description:

DIN Flange Globe valves offer the ultimate in dependavle service for steam, air, gas, oil , oil vapor and high pressure in stallations. All have streight-though ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

1 . Body: Body is cast with heavy sections reinforced at points subjected to the greates stress.

2 . Disc: Disc is plug type.

3 . Stem: The Tee-head disc-stem connection prevents lateral strain on the stem for smooth, easy operation.

4 . Bonnet Gasket: Bonnet gasket provides a positive seal against leakage. PN16 to PN40 valves have a male/Female bonnet joint. A ring type gasket is employed in PN63 to PN100

5 . Operator: Handwheel, Gear Box, Pneumatic, Electric Acutator

Technical Specifications:

  • Design & Manufacture standard: DIN3356
  • Face to face dimension standard: DIN3202
  • Flange standard: DIN2543 to DIN2546
  • Test & Inspect: DIN3230
Material of main Parts Body

Carbon Steel WCB,WCC,LCB.WC5
Disc CS or SS
Stem Stainless Steel
Seat HF or STL
Backseat Bushing Stainless Steel
Packing Graphite+SS304/SS316
Bolt /Nut Carbon steel
Operation Handwheel, Chain wheel, Gear Box, Pneumatic, Motor,Hydraulic
Working Temperature -29 to 425 Celsius degree
Working Medium Water, Oil, Gas, H2SO, Steam

Dimmension:

OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam OS & Y Electric Actuator DIN Globe Valve Flange Type Cast Steel For Steam

Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
H 218 258 275 280 330 350 355 400 415 460 510 710 786 925 1120
