Forged Steel Valves, ANSI Forged Steel Socket Welded/NPT Gate Valve 800LB
Forged Steel Valves, ANSI Forged Steel Socket Welded/NPT Gate Valve 800LB
Specifications
Brand Name :
TEYI
Model Number :
Z11H
Certification :
ISO/CE/API/SGS
Place of Origin :
Zhejiang, China
MOQ :
1-20PCS
Price :
negotiation
Payment Terms :
T/T; L/C,Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7-15 working days after received payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
Forged Steel Gate Valve
Design :
API602
SW ends dimension :
ASME B16.11
Butt weld ends dimension :
ASME B16.25
Face to face dimension :
ASME B15.10
Inspection and test :
API 598
Pressure-temp. rating :
ASME B16.34
Material :
Forged
Description

Forged Steel Valves, ANSI Forged Steel Socket Welded/NPT Gate Valve 800LB

Product Description

Forging valves for hot forgings increase recrystallization and grain refinement, prompting the material to achieve the maximum possible strength and homogenization. The grain surrounds the body profile to reduce metal fatigue. Forging capabilities to meet most of the design needs is the most important advantage.

Design Features:

Size: 1/2"~2"
Class: 800LB~1500LB
OS&Y,Rising Stem
Bolted Cover
Solid Wedge Type
Bypass Equipments(On Request)
Locking Device(Request)
Extended Stem for cryogenic(On Request)

Standards:

Design And Manufacture API 602(BS 5352)
Design And Manufacture ASME B16.10 Or Manufacturer's specification
Flange Ends Dimensions ASME B16.5
BW Ends Dimensions ASME B16.25
Socket Weld Ends Dimensions ASME B16.11
Threaded Ends Dimensions ASME B1.20.1
Pressure-Temperature Ratings ASME B16.34
Normal Pressure

Class 800-1500
Normal Diameter NPS1/2"-2"

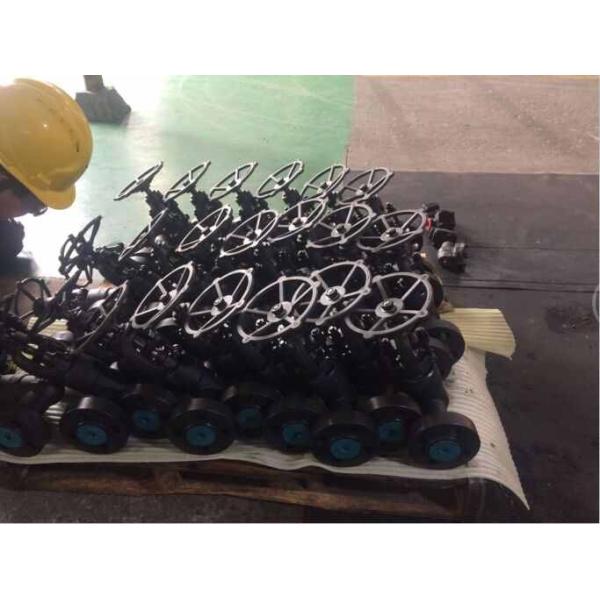

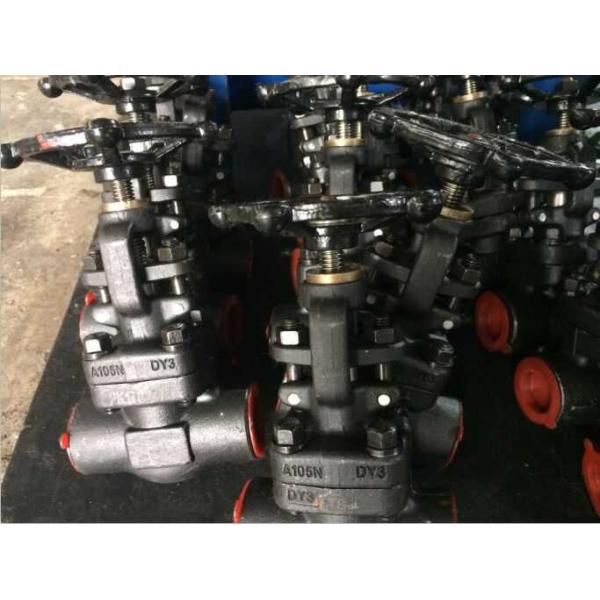

Product Picture

Forged Steel Valves, ANSI Forged Steel Socket Welded/NPT Gate Valve 800LB

Forged Steel Valves, ANSI Forged Steel Socket Welded/NPT Gate Valve 800LB

Competitive Advantages:

1. Our products is guaranteed within 18 months after delivery.
2. We offer free sample if interest before orders.
3. Technology renovation, process improvement, structure optimization and quality improvement.
4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
6. 100% inspection & testing before delivery.
7. Third party inspection on customer requirement.
