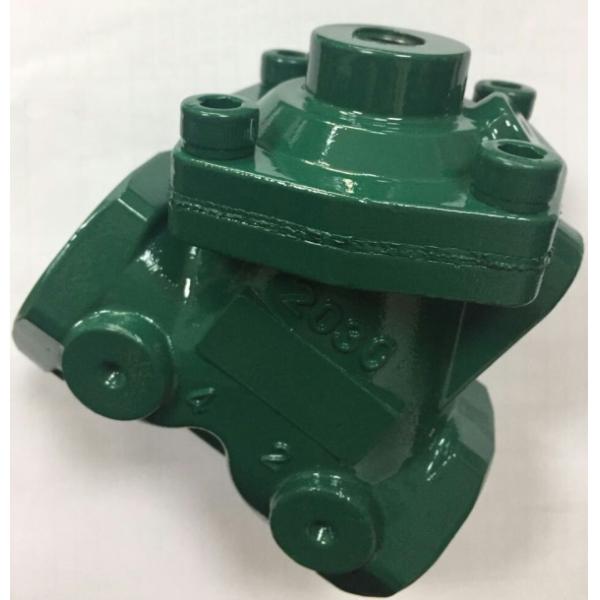

Y Type Hydraulic Control Valves Cast Iron / Carbon Steel / Stainless Steel Screwed
Y Type Hydraulic Control Valves Cast Iron / Carbon Steel / Stainless Steel Screwed
Specifications
Brand Name :
TEYI/OEM
Model Number :
J145X
Certification :
API/CE/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
L/C, T/T.Western Union
Supply Ability :
1000pcs per month
Packaging Details :
Carton and wooden box
Name :
Screwed Hydraulic control valve
Size :
DN15 to DN50
Pressure :
PN6 to PN25
Working Temp. :
0 to 120 ℃
Medium :
water or Oil
inspection Standard :
GB/T13927 or API 598
Description

Description:

1. Investment Casting, high quality of casting

2. Automatic opening or closed against inlet and outlet pressure difference.

3. Only changed control system, Valve can be used to Pressure reduce valves, relief valves, check valves as per requirments.

4. Valves is used for farm irrigation system.

5. Valves can be customized as requirements.

Y Type Hydraulic Control Valves Cast Iron / Carbon Steel / Stainless Steel Screwed

Material:

Material for main Parts Body/Cover Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Diaphragm EPDM or NBR
Disc Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Pilot valve SS or Brass
Spring SS304
Shaft A276 410
Operation Automatic control by pressure differential
Working Temperature 0 to 80 Celsius degree
Working Medium Water

Competitive Advantage:

1 . 30 years of industrial valves experience to guarantee quality.

2 . Always stand on the side of of the customer, and support customer to win the market and find new way.

3 . 12 months warranty

4 . Short Delivery time
