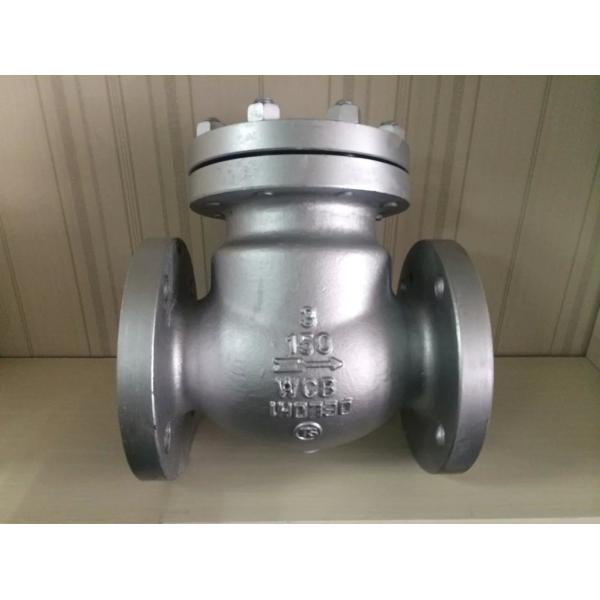

2 inch 150LB Bolted Bonnet Swing type Flanged Wafer Check Valves
2 inch 150LB Bolted Bonnet Swing type Flanged Wafer Check Valves
Specifications
Brand Name :
TEYI
Model Number :
H44H
Certification :
CE/API/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
L/C at sight. T/T, Westem Union
Supply Ability :
500pcs per month
Delivery Time :
5-8 working days after received payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
Wafer Check Valve
Size :
DN15 to DN300
Pressure :
PN10 to PN40
. :
-196 to 550 ℃
Medium :
Water, Oil, Gas, Steam
Inspection Standard :
API 598
Description

2 inch 150LB Bolted Bonnet Swing type Flanged & Wafer Check Valve

Description:

Flanged & Butt-welding ends swing check valves are used in pipes under pressures between PN1.6 - 16.0Mpa, Class 150 - 900Lb, working temperatures between -29 ~ 570°C, They are used in industries include oil, chemistry, pharmaceutical, fertilizer, and power generation to prevent the backward flux of the media.

Main structural features:

  1. Rational structure, reliable sealing, excellent performance, pretty appearance.
  2. Cobalt base alloy welded sealing surface, anti-wearing, erosion-proof abrasion-proof and longer use life.
  3. Inside-set blot-bearing structure reduces leakage and reliable use.
  4. Under pressures rating equal to or greater than 16.0Mpa, Class 1500,the valve belly, self-tightening structure offers a tighter sealing for a higher medium pressure.
  5. Different parts materials and differentsizes for flange,butt-welding are available for sensible combinaation according to different working facts and customers' requirements.

2 inch 150LB Bolted Bonnet Swing type Flanged Wafer Check Valves


2 inch 150LB Bolted Bonnet Swing type Flanged Wafer Check Valves

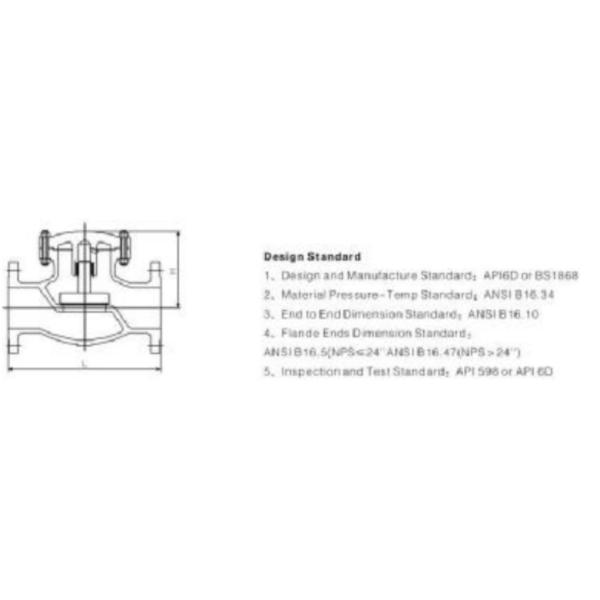

Main dimension and weights

NPS inch 1/2" 3/4" 1" 1,.1/4" 1.1/2" 2" 2.1/2" 3" 4" 5" 6" 8" 10" 12"
mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300
Class 150 L RF 108 117 127 140 165 203 216 241 292 356 406 495 622 699
RTJ 119 130 140 153 178 216 229 254 305 366 410 508 635 711
BW 108 117 127 140 165 203 216 241 292 356 406 405 622 699
H 76 76 95 102 115 140 162 168 194 210 226 250 275 332
Class 300 L RF 152 178 203 216 229 267 292 318 356 400 445 533 622 711
RTJ 162 191 216 229 242 283 308 333 371 416 460 549 638 727
BW 152 178 203 216 229 267 292 318 356 400 445 533 622 711
H 78 82 102 106 118 140 164 178 195 223 245 290 336 380

Competitive Advantages:

1. Our products is guaranteed within 18 months after delivery.
2. We offer free sample if interest before orders.
3. Technology renovation, process improvement, structure optimization and quality improvement.
4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
6. 100% inspection & testing before delivery.
7. Third party inspection on customer requirement.
