Specifications
Brand Name :
TEYI
Model Number :
Q41F
Certification :
CE/API/ISO/TS
Place of Origin :
China
MOQ :
1-20pcs
Price :
negotiation
Payment Terms :
T/T or L/C at sight
Supply Ability :
500pcs per month
Delivery Time :
7-15 working days after received payment

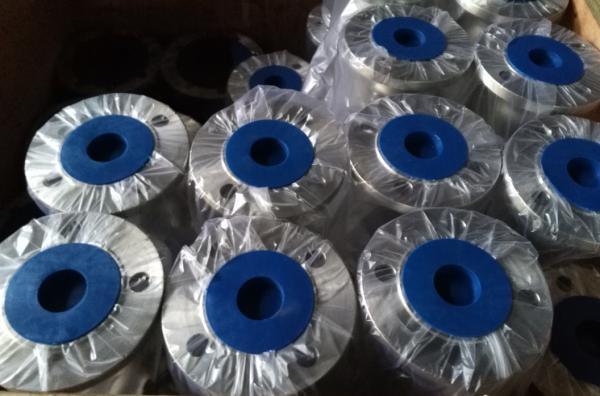

Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
Floating Ball Valve
Material :
Stainless Steel CF8, CF8M, CF3, CF3M
Connection Form :
Flange, RF
Driving Mode :
Manual
Structure :
Floating Ball Valve
Application :
Water, Oil, Gas, Steam
Description

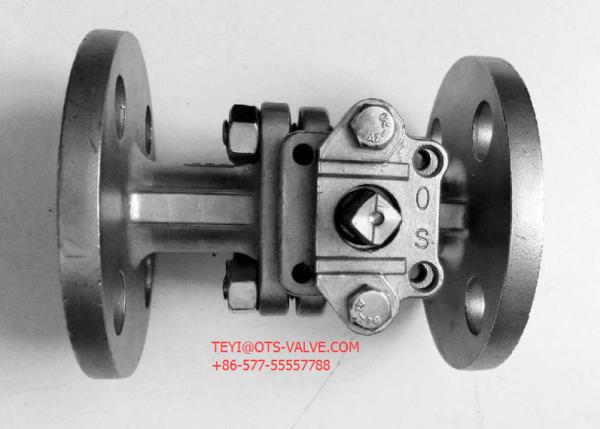

PN16 Hand Operated Two Way Ball Valve 2" Locking Flange Type For Water

Product Description

1. Swith Indication of Hand Operated Float Ball Valve

2. Valve locking Device

3. Anti-Flyout structure of valve stem

4. Antistatic Device

5. Fire Protection Structure

6. Middle Flange leak-tight Structure

7. Dependable Seating Structure

8. Self-Relieving Structure

Design Features:

  1. Full port design/Reduced port design
  2. 2 Piece bolted body
  3. Floating ball valve
  4. Blow-out proof stem
  5. Fire safe design
  6. Anti-static device
  7. ISO 5211 direct mounting type
  8. With locking device

Design Standard:

  • Size: NPS 2" to 10"
  • Pressure: PN6 to PN40
  • Design and manufacture Standard: BS 5351
  • Face to Face Dimensions Standard: EN558-1
  • Flange Ends Dimensions Standard: EN1092
  • Inspection and Test Standard: EN12266

Dimension:

PN16 Hand Operated Two Way Ball Valve 2

Size 15 20 25 32 40 50 65 80 100 125 150 200
L 130 140 150 165 180 200 220 250 280 320 360 400
H 103 112 123 150 155 172 197 222 253 286 295 335
D0 100 100 100 160 160 200 250 250 300 400 600 800

Competitive Advantage:

1. 30 years of industrial valves experience to guarantee quality.
2. always stand on the side of of the customer, and support customer to win the market and find new way.
3. 12 months warranty
4. Short Delivery time
