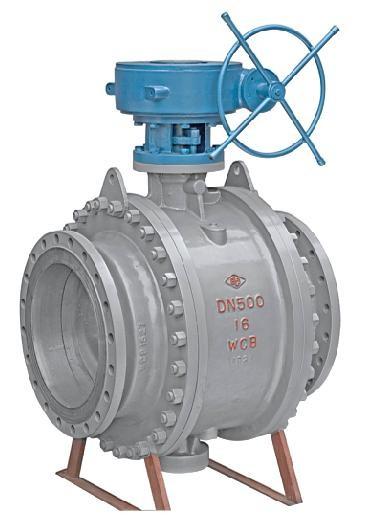

API Fixed Flanged Ball Valve , Trunnion Ball Valve Flanged End With Cast Steel
API Fixed Flanged Ball Valve , Trunnion Ball Valve Flanged End With Cast Steel
Specifications
Brand Name :
TEYI or OEM
Model Number :
Q347
Certification :
CE/API/SGS
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or L/C at sight
Supply Ability :
500pcs per month
Delivery Time :
7-15 working days after received payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
APi Fixed Ball Valve, Trunnion Ball Valve,Flanged end With Cast Steel
Size :
2inch to 48inch
Flange Dimension :
ASME B16.5
Pressure :
Class 150LB-900LB
Pressure-Temp :
ASME B16.34
Standard :
API 6D/API608/BS5351
Inspection standard :
API598/API6D
Description

API Fixed Flanged Ball Valve, Trunnion Ball Valve, Flanged end With Cast Steel

China TeYi Valve Co.,Ltd was founded in 1988,with many years of history in valve production, We specialized in scientific research, designing, manufacturing, sales and service.

Main products included: gate valve, globe valve, ball valve, check valve, butterfly valve and hydraulic control valve etc, which have more than 30varieties,with over 130 series and thousands of models and seproducts are designed and manufactured according to domestic and overseas standards such as ISO, API, BS, DIN, JIS, GB, JB and so on.

The company is dedicated to exploringinternational markets to have currently exported millions of sets of valves, which are sold abroad to more than ten countries and regionsin Middle East,Southeast Asia Europe and America, enjoy good reputation among numerous customers.

Specifications:

Product Name API Fixed Flanged Ball Valve
Material A216 WCB
Size 2"-48"(DN50-DN1200)
Pressure Class 150-900LB
Ball A105+ENP
Seat Ring A105+ENP
O-Ring Viton
Gasket SS304+Graphite
Trunnion A105+ENP
Sping Inconel X-750
Packing Graphite

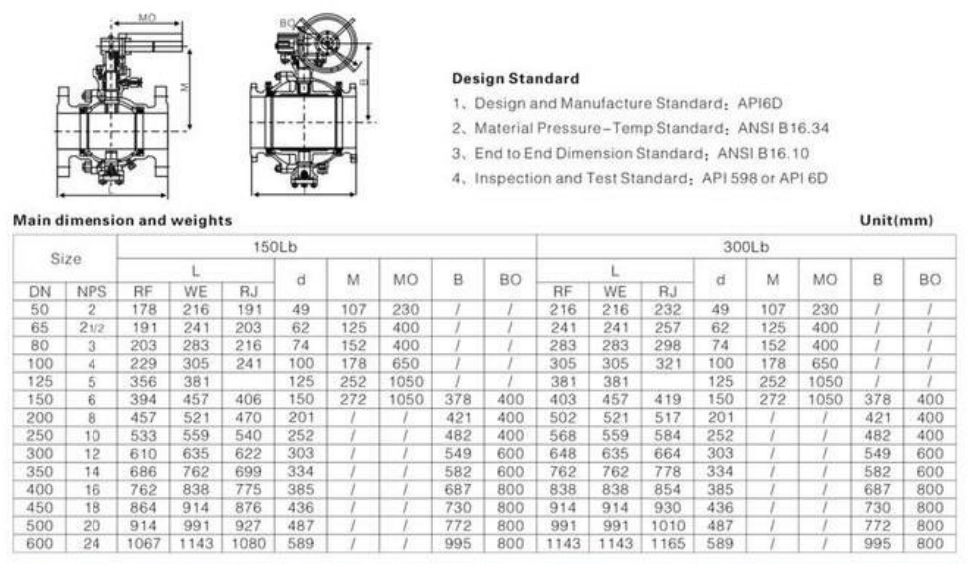

Technical Drawings

API Fixed Flanged Ball Valve , Trunnion Ball Valve Flanged End With Cast Steel

API Fixed Flanged Ball Valve , Trunnion Ball Valve Flanged End With Cast Steel

Competitive Advantage:

1. 30 years of industrial valves experience to guarantee quality.
2. always stand on the side of of the customer, and support customer to win the market and find new way.
3. 12 months warranty
4. Short Delivery time

Product tags

flanged end ball valves

,

ball valves flanged ends

,

ss ball valve flange type
