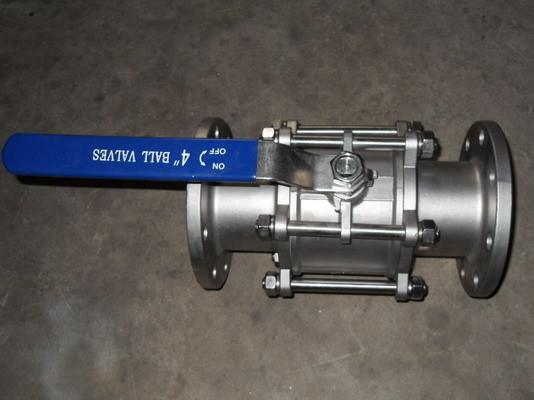

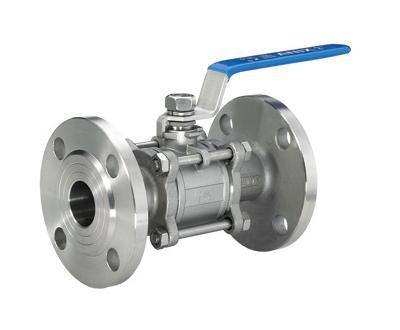

4 Inch CF8M Flanged Ball Valve , Anti - Static 3 Way ISO 5211 Ball Valve
4 Inch CF8M Flanged Ball Valve , Anti - Static 3 Way ISO 5211 Ball Valve
4 Inch CF8M Flanged Ball Valve , Anti - Static 3 Way ISO 5211 Ball Valve
4 Inch CF8M Flanged Ball Valve , Anti - Static 3 Way ISO 5211 Ball Valve
4 Inch CF8M Flanged Ball Valve , Anti - Static 3 Way ISO 5211 Ball Valve
4 Inch CF8M Flanged Ball Valve , Anti - Static 3 Way ISO 5211 Ball Valve
Specifications
Brand Name :
TEYI
Model Number :
Q41
Certification :
CE/API/SGS
Place of Origin :
Zhejiang Pr., China
MOQ :
1-20PCS
Price :
negotiation
Supply Ability :
500pcs per month
Delivery Time :
7-15 working days after received payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
3PC CF8M Flanged Ball Valve
Material :
Stainless Steel
Connection Form :
Flange
Type :
Floating Ball Valve
Function :
Shut-Off
Medium :
Water, Oil, Air
Origin :
China
Description

4 Inch CF8M Flanged Ball Valve , Anti - Static 3 Way ISO 5211 Ball Valve


Description:

  1. Investment casting body
  2. Blow-out proof stem
  3. Full bore
  4. ISO 5211 direct mounting pad for actuator
  5. Locking device handle available
  6. Anti-static device on ball and body
  7. Temperature Range:<150° C
  8. Pure TEFLON seals and seats
  9. 100% leakage tested at 100 psi aire under water


Features:

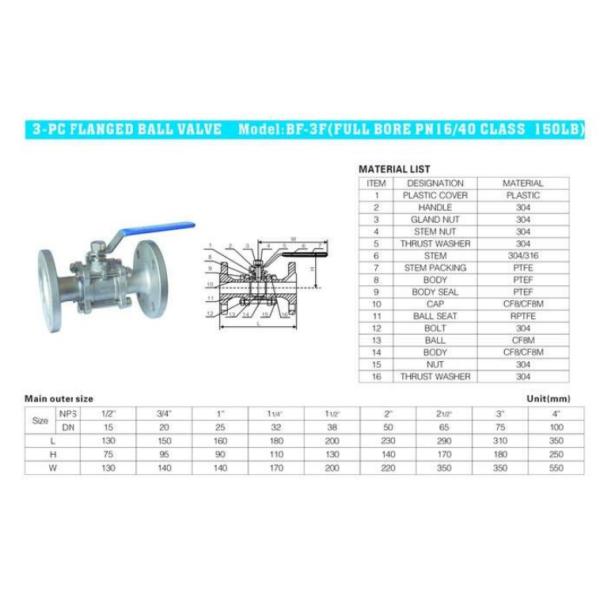

Product Name 3PC CF8M Flanged Ball Valve with ISO5211 Mounting
Type of Port Full bore/Reduce port
Body SS304, SS316(CF8, CF8M), WCB
Size 1/2"-4"(DN15-DN100)
Pressure PN16-PN40, Class 150
Ball SS
Seat PTFE, RPTFE
Shaft/Stem A182 F6 or F304/316
Operation Manual, Power-electric, Pneumatic
Working Medium Water, Oil, Gas and Corrosive Liquid
Temperature Range -20-300 degree C
Locking with or without

Design Technical:

  • Design Acc: ASME B16.34
  • Face to Face: ANSI B16.10/JIS B2002/DIN 3202
  • Flange Standard: ASME 16.5/JIS B2220/DIN 2633
  • Fire-Safe Design Avavilabe Acc: API 607
  • Inspection & Testing Acc: API598

4 Inch CF8M Flanged Ball Valve , Anti - Static 3 Way ISO 5211 Ball Valve

Advantage:


1, We offer the non-standard valves, according to customer requirements
2, If you want, you can have your own logo on the products
3, Exported to all over of the world
4, We can promise the quality, passed the CE and ISO certification


Choose me, do not hesitate:


1, Design team: We have the professional design people, as u choose, Customer's sample is always welcomed
2, Professional factory: We are manufacturer, specializing in manufacturing stainless steel valves for many years, competitive price with good quality, the deadline usually is 30-45 days
3, Sample: We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
4, Rapid response to your needs: We will be answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
