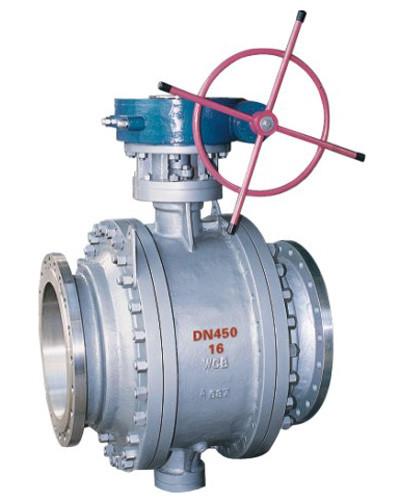

3 Piece Full Port Flanged Ball Valve , A216 WCB Gear Box Trunnion Mounted Ball Valve ​


Description:

The trunnion ball valve with the B I-sealing design structure, i. e. Seat sealing in front of the ball and seat sealing behind the ball, thus the reliable sealing of the valve is ensured because the valve can perform normally even if one of the effective sealing designs becomes lost due to the abnormal condition. Regarding the seat in front of the ball, the piston effect formed by the are a difference between D1 and D2, plus the pre-tightened force of a spring would cause the seat in front of the ball by the pressure difference of the medium before and after the valve to touch the ball closely to form the tightness, of which the sealing force will become bigger as the pressure difference gets higher.

Blow-out proof stem

Blow-out proof structure is provited with for the stem, which is positioned by the up-end cap and screw, being guaranteed not to be blown-out by the medium even if at abnormal risen pressure in the cavity.

Anti-static design

The ball of the trunnion ball valve gets close contact with each othe through the trunnion, adjusting cushion, and down-end cap, the passage of static electricity thus forms together with the valve, which may lead the static electricity caused by sparks generated by friction between the ball and seat during on and off performance to the ground to prevent the possible risk of fire or explosion.

Specifications:

Technical Drawings

Competitive Advantage:

1. 30 years of industrial valves experience to guarantee quality.
2. always stand on the side of of the customer, and support customer to win the market and find new way.
3. 12 months warranty
4. Short Delivery time
