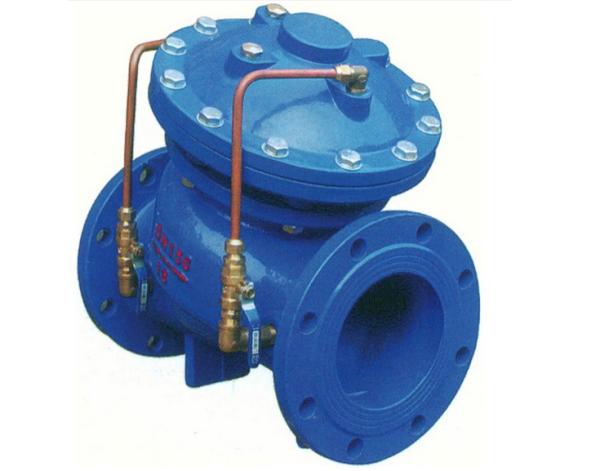

Stainless Steel Diaphragm Pump Control Valve Multifunctional For Water Supply
Stainless Steel Diaphragm Pump Control Valve Multifunctional For Water Supply
Specifications
Brand Name :
TEYI/OEM
Model Number :
JD745X
Certification :
API/CE/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
L/C, T/T.Western Union
Packaging Details :
500pcs per month
Name :
Multifuncational Pump Control Valve
Size :
DN50 to DN1200
Pressure :
PN6 to PN25
Working Temp. :
0 to 120 ℃
Medium :
water or Oil
inspection Standard :
GB/T13927 or API 598
Description

Stainless Steel Diaphragm Pump Control Valve Multifunctional For Water Supply

Description:

Multifuncational hydraulic control valve include main valve and control system. The control system include pipe, fitting, needle valve and pilot valve, etc. It was installed in water supply and drainage pipeline. The valve closed or opened against differential pressure.

Multifuncational pump control valves is installed at the outlet of pump in high building water supplying and drainage system, to prevent water back , water hammring ,water hitting. The valve have the function of the following valve: Motorzied valve, non- return valve and water hammering eliminator and can improve the safety in the system. The valve can slowly open or slowly closing , quickly closing function to prevent the water hammring when open or close pump. This valve have two types, diaphragm and piston type.

Material:

Material for main Parts Body/Cover Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Diaphragm EPDM or NBR
Disc Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Pilot valve SS or Brass
Spring SS304
Shaft A276 410
Operation Automatic control by pressure differential
Working Temperature 0 to 80 Celsius degree
Working Medium Water

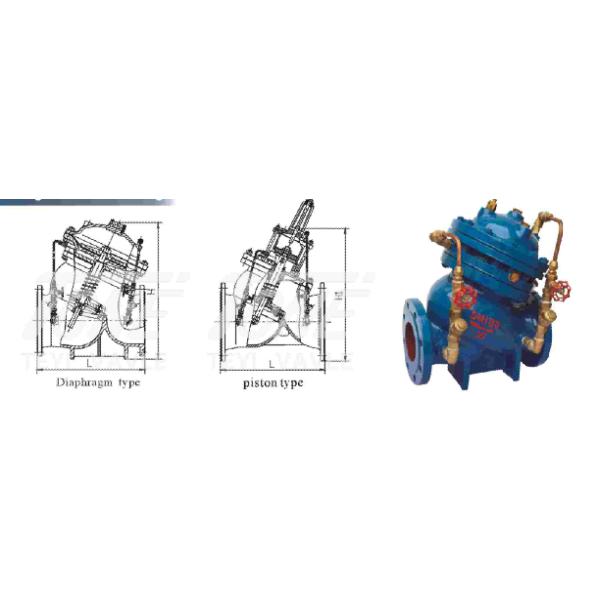

Dimesion:

Stainless Steel Diaphragm Pump Control Valve Multifunctional For Water Supply

Size 50 65 80 100 125 150 200 250 300 350
L 240 270 300 350 400 480 500 605 700 800
H 203 222 241 305 356 394 457 533 610 950
Size 400 450 500 600 700 800 900 1000 1100 1200
L 900 900 1100 1150 1300 1500 1650 1800 1800 2000
H 1150 1180 1550 1600 1750 1900 2606 2765


Stainless Steel Diaphragm Pump Control Valve Multifunctional For Water Supply

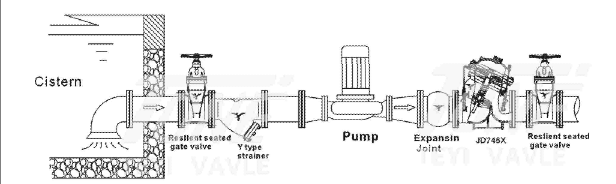

Installation drawing:

Competitive Advantage:

1 . 30 years of industrial valves experience to guarantee quality.

2 . Always stand on the side of of the customer, and support customer to win the market and find new way.

3 . 12 months warranty

4 . Short Delivery time
