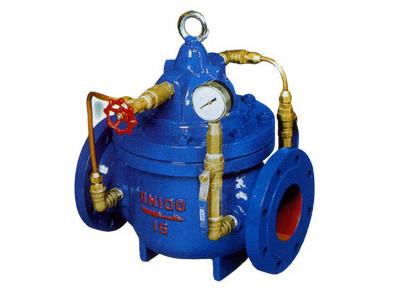

Non Return Water Hydraulic Control Valves Intelligent Diaphragm Operated
Non Return Water Hydraulic Control Valves Intelligent Diaphragm Operated
Specifications
Brand Name :
TEYI/OEM
Model Number :
300X
Certification :
API/CE/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
L/C, T/T.Western Union
Packaging Details :
500pcs per month
Name :
Non- Return Valve
Size :
DN50 to DN600
Pressure :
PN6 to PN25
Working Temp. :
0 to 120 ℃
Medium :
water or Oil
inspection Standard :
GB/T13927 or API 598
Description

Non Return Water Hydraulic Control Valves Intelligent Diaphragm Operated​

Description:

300X slowly closing Non Return check valves are automatically actuated. It is a kind of intelligent valve, installed at the outlet of pump in high building's supply system or other supply system to prevent the fluid flowing backwards, water-hammering and water-hitting. This kind of valves have the function of electric valve, non-return valve and water hammering eliminator and improves the safety of supply system. It has the principal of slowly open, quickly closing and slowly closing to provent water hammer when start or stop the pump. Just operate the pushing botton for the pump motor and the valve can auto matically open or close as per the operating procedure with little pressure lose and larged flow rate.

Material:

Material for main Parts Body/Cover Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Diaphragm EPDM or NBR
Disc Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Piping/Fitting SS or Brass
Spring SS304
Shaft A276 410
Operation Automatic control by pressure differential
Working Temperature 0 to 80 Celsius degree
Working Medium Water

Dimesion:

Non Return Water Hydraulic Control Valves Intelligent Diaphragm Operated Non Return Water Hydraulic Control Valves Intelligent Diaphragm Operated

size(mm) 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L(mm) 205 229 250 292 330 356 495 622 698 787 900 978 1075 1230
H(mm) 270 305 320 400 455 502 636 750 913 913 1035 1035 1300 1370
H1(mm) 200 210 220 260 310 342 413 510 600 600 685 685 880 950

Installation drawing:

Non Return Water Hydraulic Control Valves Intelligent Diaphragm Operated

Competitive Advantage:

1 . 30 years of industrial valves experience to guarantee quality.

2 . Always stand on the side of of the customer, and support customer to win the market and find new way.

3 . 12 months warranty

4 . Short Delivery time
