Specifications
Brand Name :
TEYI
Model Number :
Q11
Certification :
CE/API/SGS
Place of Origin :
China
MOQ :
1-20PCS
Price :
negotiation
Supply Ability :
5000pcs per month
Delivery Time :
7-15 working days after received payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Product Name :
1PC Wafer Flanged Ball Valve
Size :
1/2"-6"
Material :
Stainless Steel,Carbon Steel
Pressure :
1000WOG
Connection Ends :
Flanged
Mounting Pad :
ISO 5211
Description

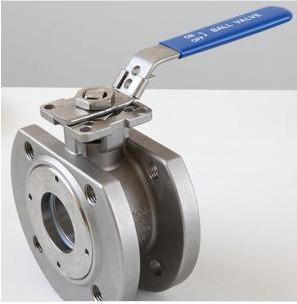

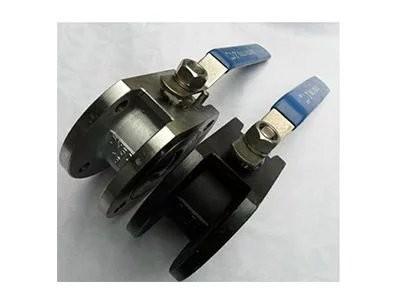

Full Bore 6" Wafer Ball Valve PN16 Pressure ISO 5211 Mounting Pad ​


Description:

One piece wafer ball valves are suitable for use on pipelines of medium or low pressure to turn off or switch on pipeline medium. Operation manners are in general of manual, and pneumatic or electric actuators are available.

  • Investment casting body and cap (1/2~6”)
  • Reinforced 15% GF/TEFLON seals and seats
  • Adjustable stem packing
  • Temperature range: -60°F to 450°F
  • Stainless steel ball and stem, PTFE gasket
  • Fire safe designed (optional)
  • 100% leakage tested at 100 psi air under water

Standard:

  1. Flange dimensions: DIN 2633
  2. Mounting pad: ISO 5211
  3. Pressure test rating: ISO 5208
  4. Anti-Static device design: EN12516
  5. Flang End: DIN2542-DIN2545
  6. Inspection testing: API598, EN12266

Full Bore 6
Material List

Item Part QTY Material
1 Handle Cover 1 PVC
2 Handle 1 304
3 Stop Block 1 304
4 Stem Nut 2 304
5 Spring Washer 2 304
6 Stem Ring 1 304
7 Stem Packing 2 PTFE
8 Stem 1 304/316
9 Thrust Washer 1 PTFE
10 Cap 1 CF8/CF8M
11 Ball 1 CF8/CF8M
12 Ball Seat 2 RPTFE
13 Joint Gasket 1 PTFE
14 Body 1 CF8/CF8M

Dimensions(mm)

Size NPS 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3" 4" 5" 6"
DN 15 20 25 32 40 50 65 80 100 125 150
L 32 38 40 50 60 70 95 118 140 195 225
H 62 75 79 86 92 102 158 172 187 200 240
W 110 125 135 150 150 180 250 300 350 650 840

Advantage:


1, We offer the non-standard valves, according to customer requirements
2, If you want, you can have your own logo on the products
3, Exported to all over of the world
4, We can promise the quality, passed the API,CE,SGS and ISO certification


Choose me, do not hesitate:


1, Design team: We have the professional design people, as u choose, Customer's sample is always welcomed
2, Professional factory: We are manufacturer, specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
3, Sample: We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
4, Rapid response to your needs: We will be answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
