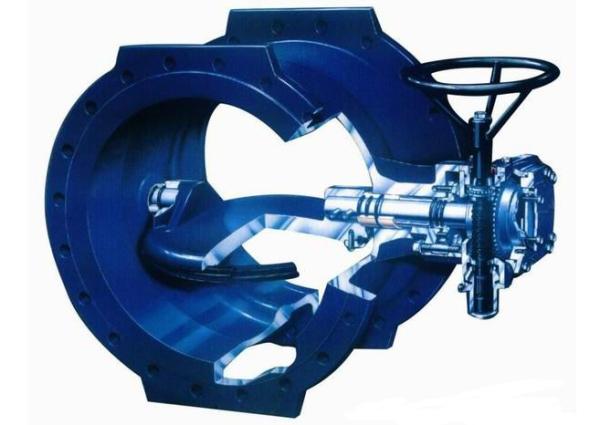

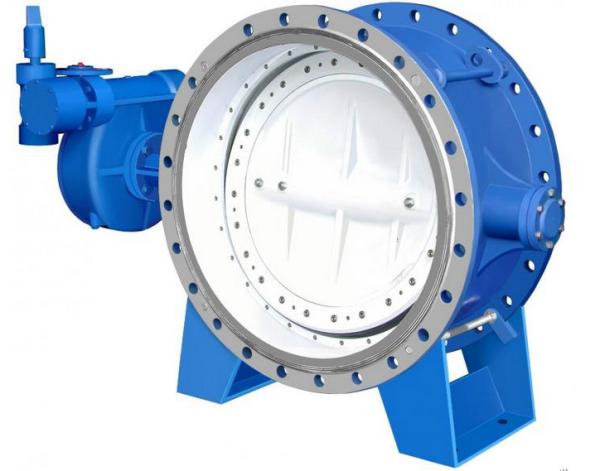

PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve
PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve
PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve
PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve
PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve
PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve
PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve
PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve
Specifications
Brand Name :
TEYI
Model Number :
D342X
Certification :
CE/API/ISO/TS
Place of Origin :
China
MOQ :
1-10PCS
Price :
negotiation
Payment Terms :
L/C at sight, T/T, Westem Union
Supply Ability :
1000pcs per month
Packaging Details :
Packed in woven bag firstly, and then reinforced with wooden case for outer packing
Product Name :
Double Offset Flange butterfly valve
Size :
DN50-DN2000
Pressure :
PN6 to PN16
Working Temperature :
-29 to 120 ℃
Material :
Cast Iron, Ductile Iron, Carbon Steel
Medium :
Water
Description

PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve

Description:
1. Double Eccentric Structure, torque is smaller than centre buttery valve.

2. Renewable sealing ring, Long service life and easy maintenance.

3. Frame construction disc with high strength

3. Top mounting flange as per ISO5211, suit for all kinds of actuators. such as handles, gear box, pneumatic and Electric Actuator.

4. Installation in any position.

5. Operated: Manual, Gear Box, Pneumatic, Electric Actuator

Specifications:

Material of main Parts Body Cast Iron, Ductile Iron, Carbon Steel
Disc Carbon Steel, Stainless Steel
Shaft Stainless Steel
Seat NBR, EPDM
Packing PTFE
Working Temperature 0 to 120 ℃
Operation Lever, Gear box, Pneumatic, Electric actuator
Working Medium Water


Dimmesion:

PN10 Cast Iron Eccentric Butterfly Valve , Double Offset Soft Seal Butterfly Valve

Size 40 50 65 80 100 125 150 200 250 300 350 400 450
L(mm) 108 108 112 114 127 140 140 152 165 178 190 216 222
H(mm) 112 112 115 120 138 164 175 200 243 250 280 305 350
Size 500 600 700 800 900 1000 1200 1400 1600 1800 2000
L(mm) 229 267 292 318 330 410 470 530 600 670 760
H(mm) 380 445 480 530 580 650 760 850 1030

1230

 1350

Typical Application:
1 . Checmical
2 . Petrochemical processing
3 . Food and Beverage
4 . Power and Utilities
5 . Pulp and Paper

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality on the market.
