Professional Special 10x30 Metal Dowel Pins For Shelves , Straight Dowel Pin
Professional Special 10x30 Metal Dowel Pins For Shelves , Straight Dowel Pin
Professional Special 10x30 Metal Dowel Pins For Shelves , Straight Dowel Pin
Professional Special 10x30 Metal Dowel Pins For Shelves , Straight Dowel Pin
Specifications
Brand Name :
Summery
Model Number :
Iso8735 Dowel Pin
Certification :
Iso8735
Place of Origin :
Shanghai
MOQ :
Negotiable
Payment Terms :
Western Union
Packaging Details :
Plastic bag
Product Name :
Parallel pins
Maerial :
steel
Size :
10x30
Tolerance :
m6
surface :
polish
Application :
Machinery industry
Description

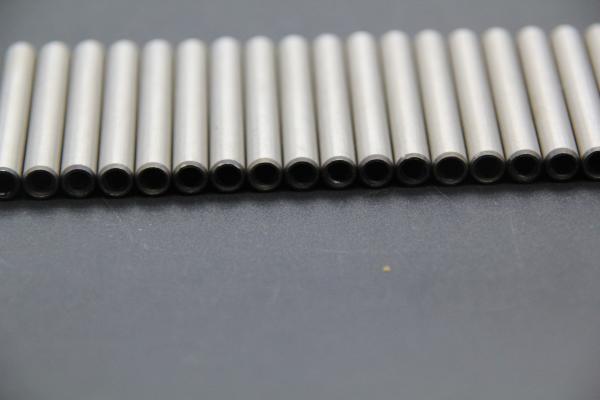

Iso8735 Dowel Pins Parallel Pins 10m6x30 steel

This International Standard specifies the characteristics of parallel pins with internal thread of steel,through hardened or case hardened and martensitic stainless steel, with nominal diameters d1 from 6 mm to 50 mm inclusive.

EXAMPLE
A through hardened steel parallel pin type A, with internal thread, with nominal diameter d1 = 10 mm and
nominal length l = 30 mm is designated as follows:
Parallel pin ISO 8735 – 10 x 30 – A – St
