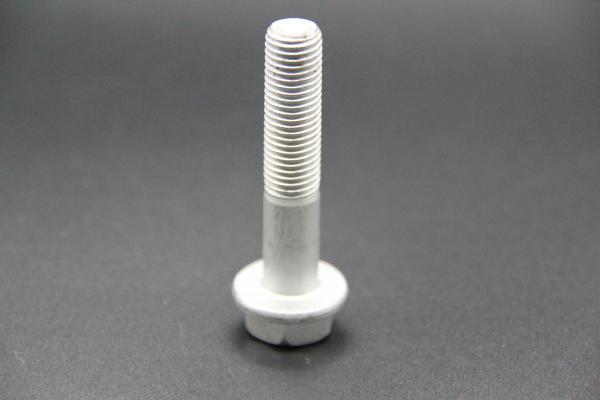

DIN6921-M5x16-8.8 Flange Head Screws Bolt Fine Pitch , Right Hand Threads
DIN6921-M5x16-8.8 Flange Head Screws Bolt Fine Pitch , Right Hand Threads
DIN6921-M5x16-8.8 Flange Head Screws Bolt Fine Pitch , Right Hand Threads
DIN6921-M5x16-8.8 Flange Head Screws Bolt Fine Pitch , Right Hand Threads
Specifications
Brand Name :
Summery
Model Number :
Din6921 Flange Head Screws
Place of Origin :
shanghai
MOQ :
Negotiable
Delivery Time :
7-10 days
Packaging Details :
According to customer requirements
Certification :
ISO 4162
Payment Terms :
Western Union, MoneyGram, L/C, D/A, T/T
Name :
Din6921 Flange Head Screws
Class :
8.8
Size :
M5x16
Material :
Middle carbon steel
Finish :
Plain / Zinc Plated / Nickel / Black Oxide / Dacromet
Application fields :
Automotive
Description

DIN6921– M5x16– 8.8 Dacromet middle carbon steel Flange Head Screws

This International Standard specifies the characteristics of flange hexagon bolts ,with product grade A, with threads from M5 up to and including M16 and property classes 8.8, 9.8, 10.9 and A2-70,A4-70.

Flange head screws includes two kinds of serrated and smooth plane.

Shanghai summery industrial machine Co.,Ltd was established in 2006,it is located at Shanghai,which is the most vigorous city in world.

If you are looking for flange head screws, please contact us for further information.

DIN6921-M5x16-8.8 Flange Head Screws Bolt Fine Pitch , Right Hand Threads

Mechanical and physical peroperties of bolts,screws and studs
Mechanical and physical peroperties Property class
8.8 10.9 12.9
d≦16 mm d﹥16 mm
Minimum tensile strength (N/mm2) min 800 830 1040 1220
Vickers hardness (HV) min 250 255 320 385
max 320 335 380 435
Brinell hardness (HB) min 238 242 304 366
max 304 318 361 414
Rockwell hardness (HRC) min 22 23 32 39
max 32 34 39 44
