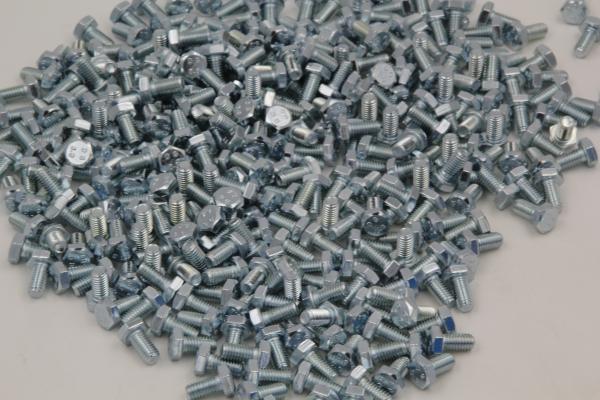

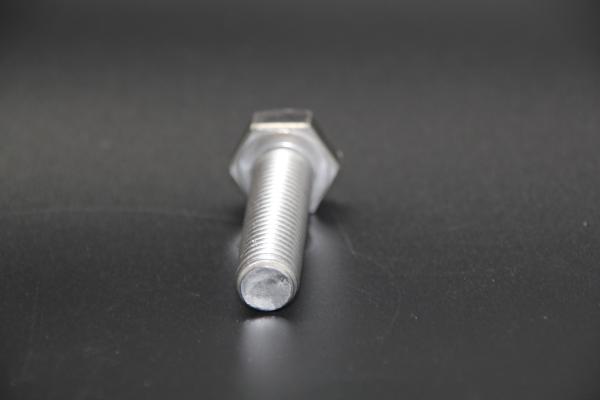

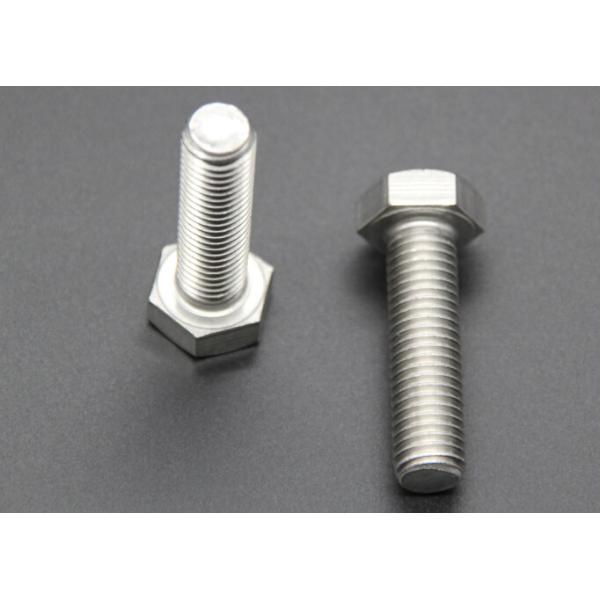

DIN 933 M4X16 8.8 Carbon Steel Threaded Rod , Full Thread Hex Bolt ISO 4017
DIN 933 M4X16 8.8 Carbon Steel Threaded Rod , Full Thread Hex Bolt ISO 4017
DIN 933 M4X16 8.8 Carbon Steel Threaded Rod , Full Thread Hex Bolt ISO 4017
DIN 933 M4X16 8.8 Carbon Steel Threaded Rod , Full Thread Hex Bolt ISO 4017
Specifications
Brand Name :
Summery
Model Number :
DIN933
Certification :
ISO4017
Place of Origin :
Shanghai
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
D/A, L/C, T/T, Western Union
Supply Ability :
10000000
Delivery Time :
7-10 Days
Packaging Details :
Poly bags
Product Name :
DIN933 hex head bolt
Material :
medium carbon steel
Size :
M4x16
Tolerance :
6h
Surface :
Zinc plate
Grade :
8.8
Description

ISO 4017 M4X16 8.8 Head Bolt DIN 933 Zinc plate Product grades A

This International Standard specifies the characteristics of hexagon head screws with threads from M1,6

up to and including M64, of product grade A for threads M1,6 to M24 and nominal lengths up to and

including 10 d or 150 mm,whichever is shorter, and product grade B for threads over M24 or nominal

lengths over 10 d or 150 mm, whichever is shorter.

EXAMPLE

A hexagon head screw with thread size M12, nominal length l = 80 mm and property class 8.8 is designated as follows:

Hexagon head screw ISO 4017 DIN933 - M12 X 80 - 8.8

DIN 933 M4X16 8.8 Carbon Steel Threaded Rod , Full Thread Hex Bolt ISO 4017

Material Steel Stainless steel

General International

requirements Standard

 ISO 8992

Thread Tolerance

International Standards

 6g
ISO 261, ISO 965-2

Mechanical Class

properties International Standards

 8.8, 9.8, 10.9 A2-70,A4-70
ISO 898-1 ISO 3506-1

Tolerances Product grade

International Standard

 A
ISO 4759-1
Finish

Black oxide Plain

(thermic or chemical)

Requirements for

electroplating are

covered in ISO 4042

If different electroplating requirements are desired or if requirements are needed for other finishes, they should be negotiated between customer and supplier.

Limits for surface

discontinuities are

covered in ISO 6157-3.
