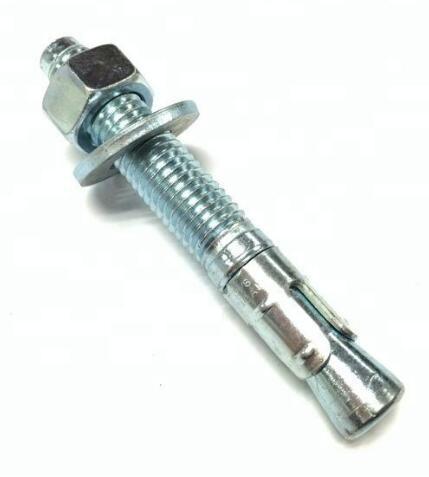

Wedge Anchor Carbon Steel Hex Socket Head Bolt M10 Size Zinc Plate Surface

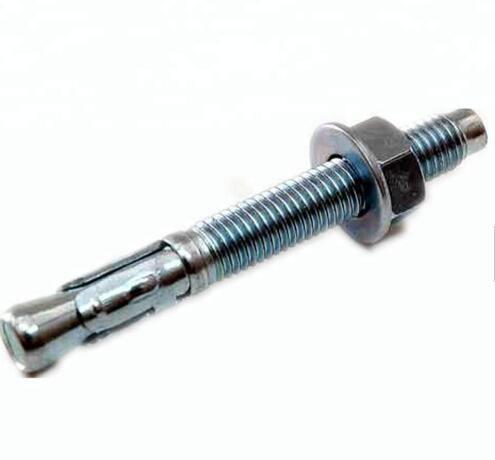

Wedge Anchor Carbon Steel Hex Socket Head Bolt M10 Size Zinc Plate Surface
Wedge Anchor Carbon Steel Hex Socket Head Bolt M10 Size Zinc Plate Surface
Wedge Anchor Carbon Steel Hex Socket Head Bolt M10 Size Zinc Plate Surface
Specifications
Brand Name :
summery
Model Number :
Wedge Anchor
Certification :
ISO4032
Place of Origin :
China Shanghai
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
Western Union, L/C, D/A, D/P
Supply Ability :
10000000
Delivery Time :
7-10days
Packaging Details :
Poly bags
Product name :
Wedge Anchor
Material :
steel
Project :
Wedge Anchor
Size :
M10
Grade :
10
Surface :
Zinc plate
Description

Wedge anchor can be used for anchoring of concrete and external wall structural parts. Its installation is very convenient.

Material: Grade 4.8, 5.8 carbon steel and 304, 316 stainless steel

Surface treatment: cold galvanized (zinc layer thickness ≥ 5um);

hot galvanized (zinc layer thickness ≥ 45um);

304,316 stainless steel does not require surface treatment.

Technical parameters(mm):

Product model Drilling diameter Standard drilling depth Anchorage thickness(max) Mounting torque
M8×90 8 65 15 15
M10×100 10 75 15 30
M12×120 12 95 15 50
M16×140 16 110 20 100
M20×170 20 130 25 200

Design Parameters(KN):

Product model C30 Non-cracking concrete C30 Cracked concrete
Tensile design reference Shear design reference Tensile design reference Shear design reference
M8×90 5.0 7.8 2.8 7.8
M10×100 8.5 10.5 5.8 10.5
M12×120 13.1 14.5 8.0 14.5
M16×140 20.3 27.8 12.3 27.8
M20×170 33.5 45.5 20.2 45.5

Operating:

1. Use straight hole drills to drill holes of corresponding diameter and depth

2. Use the soot blower to sweep ash until the hole has no dust overflow

3. Place the gasket and knock the wedge anchor into the hole

4. Use the torque drill to tighten the nut and expand the expansion piece to achieve anchoring

P.s. Electric hammer, drills, soot blowers, torque drills and mounting connector will be used during the operation.

Jiraw is equipped with a mounting connector as sandard. Others are purchased on demand.

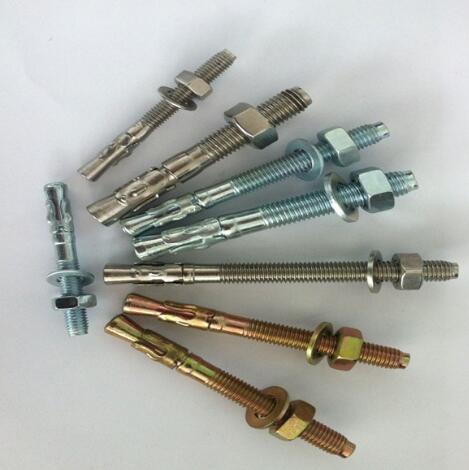

Wedge Anchor Carbon Steel Hex Socket Head Bolt M10 Size Zinc Plate Surface

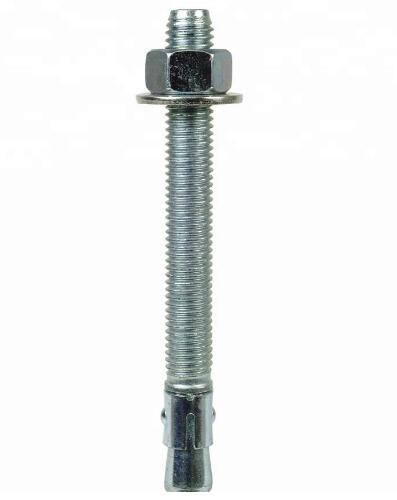

Wedge Anchor Carbon Steel Hex Socket Head Bolt M10 Size Zinc Plate Surface

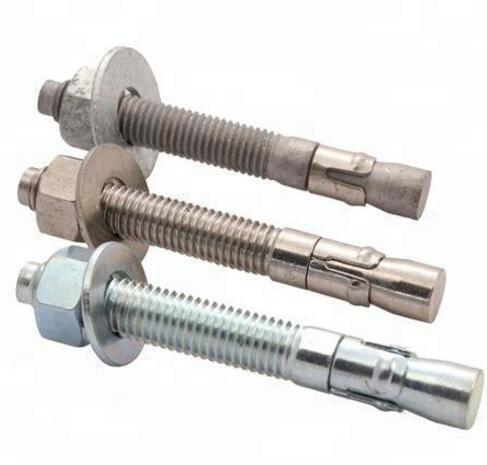

Wedge Anchor Carbon Steel Hex Socket Head Bolt M10 Size Zinc Plate Surface
