Forged Stainless Steel High Pressure Fittings Threaded Street Elbow ASTM A182 F316
Forged Stainless Steel High Pressure Fittings Threaded Street Elbow ASTM A182 F316
Specifications
Brand Name :
KASUGAI
Model Number :
ASTM A182 F316 ASME B16.11 High Pressure l Forged Threaded Street Elbow Cross Plug Outlet Union
Certification :
ISO-9001; PED; AD 2000
Place of Origin :
CHINA
MOQ :
TO BE NEGOTIATED
Price :
PER BASE MATERIAL PRICE
Payment Terms :
L / C , T / T
Supply Ability :
100 TONS / MONTH
Delivery Time :
60 DAYS FOR ONE CONTAINER
Packaging Details :
SEAWORTHY PACKING
Product Name :
High Pressure l Forged Threaded Street Elbow Cross Plug Outlet Union
Size Range :
1/8" to 2"
Thread Type :
ASME B1.20.1(NPT)
Pressure Class :
Class 3000, 6000
Standards :
ASTM A182 F316/L
Dimensions :
ASME B16.11
Description

ASTM A182 F316 ASME B16.11 High Pressure l Forged Threaded Street Elbow Cross Plug Outlet Union

Product Information

A Threaded Street Elbow is a type of pipe fitting that connects two pipes or fittings with male and female threads at a 90-degree angle, commonly used in plumbing and piping systems.

· Applications: Commonly used in plumbing systems, water lines, gas lines, and other applications where threaded connections are preferred.

· Advantages:

o Easy Installation: Threaded connections allow for quick and easy installation without the need for welding.

o Versatility: Suitable for a wide range of piping systems and applications.

o Space Efficiency: The 90-degree bend helps navigate tight spaces or areas with limited clearance.

Product Name ASTM A182 F316 ASME B16.11 High Pressure l Forged Threaded Street Elbow Cross Plug Outlet Union
Thread Types ASME B1.20.1(NPT)
Dimensions ASME B16.11
Size Range 1/8” to 2”
Pressure Class Class 3000 6000
Standards ASTM A182 F316/L

Standards & Materials: ASTM A182 F316/F316L

Stainless steel 316/ 316L flanges have enhanced resistance to pitting corrosion in chloride environments due to the addition of molybdenum. The letter “L” denotes low carbon content. According to ASME B16.5 and ASME B16.47, SS 316/ 316L flanges may be made from forgings of ASTM A182 Grade F316 or F316L, castings of ASTM A351 Grades CF8M or CF3M, and plates of ASTM A240 Grades 316 or 316L.

ASTM A182 F316/F316L Chemical Composition (%)

Grade C, max Mn, max P, max S, max Si, max Ni Cr Mo N, max
F316 0.08 2.00 0.045 0.030 1.00 10.0~14.0 16.0~18.0 2.00~3.00 0.10
F316L 0.03 2.00 0.045 0.030 1.00 10.0~15.0 16.0~18.0 2.00~3.00 0.10

ASTM A182 F316/F316L Mechanical Properties

Grade

Tensile Strength, min

(MPa)

Yield Strength, min

(MPa)

Elongation in 2inchs, min

(%)

Reduction of Area, min

(%)
F316 515 205 30 50
F316L 485 170 30 50

Dimensions of ASME B16.11 Threaded Street Elbow (mm)

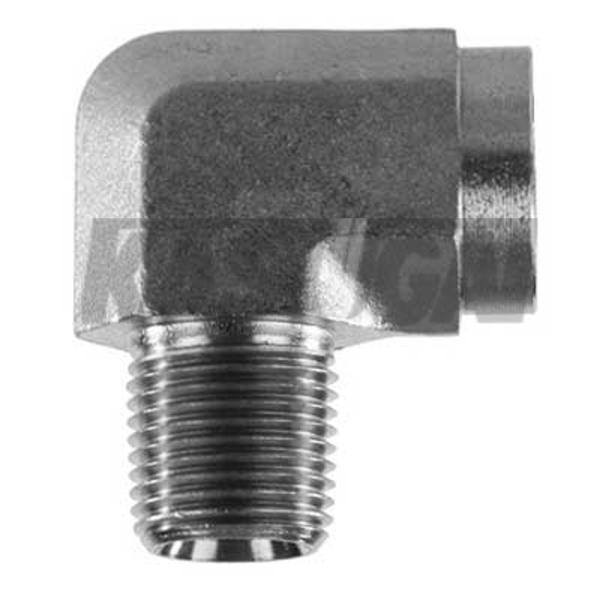

Forged Stainless Steel High Pressure Fittings Threaded Street Elbow ASTM A182 F316

ASME B16.11 street elbow with one end MNPT and other end FNPT

NPS A J H G1 G2 B L2 L
3000# 6000# 3000# 6000# 3000# 6000# 3000# 6000# 3000# 6000#
1/8" 19 22 25 32 19 25 3.18 5.08 2.74 4.22 6.4 6.7 10
1/4" 22 25 32 38 25 32 3.30 5.66 3.22 5.28 8.1 10.2 11
3/8" 25 28 38 41 32 38 3.51 6.98 3.50 5.59 9.1 10.4 13
1/2" 28 35 41 48 38 44 4.09 8.15 4.16 6.53 10.9 13.6 14
3/4" 35 44 48 57 44 51 4.32 8.53 4.88 6.86 12.7 13.9 16
1" 44 51 57 66 51 62 4.98 9.93 5.56 7.95 14.7 17.3 19
1-1/4" 51 54 66 71 62 70 5.28 10.59 5.56 8.48 17.0 18.0 21
1-1/2" 54 64 71 84 70 84 5.56 11.07 6.25 8.89 17.8 18.4 21
2" 64 83 84 105 84 102 7.14 12.09 7.64 9.70 19.0 19.2 22

General Note: all dimensions are in millimeter

Notes: A: center-to-female end of street elbow; B: minimum length of perfect thread; G1 minimum wall thickness; G2 minimum wall thickens; H: outside diameter of band; J: center-to-end of street elbow; L: minimum length of mal thread; L2 effective length of external thread;
