Specifications
Brand Name :
AnKuai
Model Number :
AKT328
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union, D/P
Supply Ability :
5000 sets per day
Delivery Time :
5-7 working days
Packaging Details :
High quality carton/ Wooden box
Price :
USD873-USD764/set
Material :
SS 304
Size :
1500*120*980mm
Power Supply :
AC220V/110V
Passing Direction :
Single way or Bi-direction
Application :
indoor/outdoor
Passage Width :
600mm (standard), 1200mm (max)
Turnstile Interface :
Pulse signal
Temperature :
-40~60°C
Model :
AKT328
Model Name :
Speed Gate Turnstile
Description

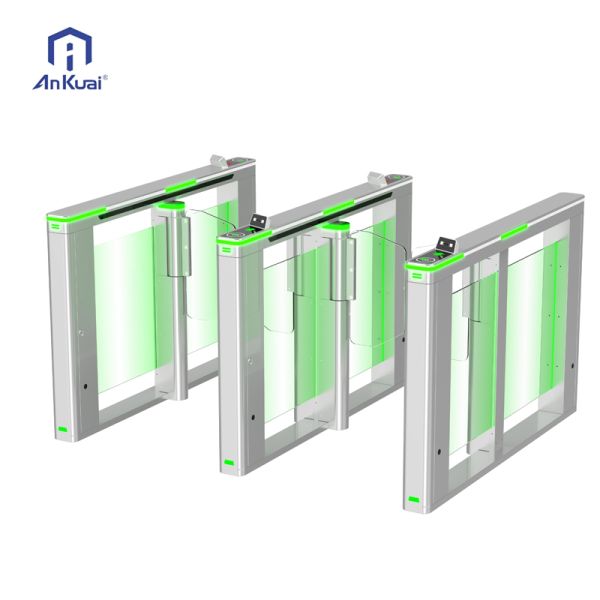

Subway Airport High-Speed Gate Security Turnstile Swing Barrier Gate

• Speed gate turnstile is designed to control pedestrians entering or exiting restricted areas, usually used for high pedestrian traffic flow in both directions.
• The body is made from 304 brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environments.
• It can be integrated with any kind of access controller system (e.g.: IC/ID, Push button, Fingerprint and Biometric device).
• In case of emergency, the speed turnstile arm will open automatically to allow free passage.
• Speed Turnstiles are suited for elegant and luxury entrance solutions.

Product Description

Model No AKT328
Cabinet Material 304 Stainless Steel
Dimensions 1500*120*980mm (L*W*H)
Arm Open/Close Time 1s
Passage Width Standard 600mm, Max 1200mm
Arm Lenght <=500mm
Dry Contact 12V
Direction Bi-directional
Service Life 5 million times
Communication Interface RS485(distance<=1200m)
Power Supply AC 220V/110V ±10% 50/60Hz (optional)
Opening /Closing Speed 30-45 persons per minute
Card-reading Window Two
Working Environments Indoor or outdoor

Main Features

• The whole system runs smoothly. Long-life performance, high operation dependability and fast response.
• Alarm function, in case of illegal intrusion and reverse intrusion.
• Infrared sensor to prevent pedestrians from getting clamped.
• Anti-breakthrough function: the gate is locked automatically until the opening signal is received.
• Anti-trailing function: the turnstile will lock if there is forced entry without swiping the RFID card.
• LED indicator.
•When power is off, the speed gate turnstile will open automatically, which complies with fire safety requirements.

Subway Airport Swing Flap Turnstile Gate High Speed Security Access Gates

FAQ

1. Q: Are you a manufacturer or a trading company?

A: We are one of the TOP 2 companies in the turnstiles and Barriers system industry with more than 14 years. All the car parking barrier system management software and turnstile design software are developed by our R&D team.

2. Q: What kind of technical support you can provide?

A: We have a professional R&D team and technical department, they can assist you in any installation task and technical guide. And if necessary, our engineer could fly to your country to provide service.

3. Q: Can you provide OEM service?

A: Yes we can. As we have our own R&D team, we can develop the software and manufacture the hardware per your request.
