MC78M05CDTRKG Electronic IC Chips 500 mA Positive Voltage Regulators
MC78M05CDTRKG Electronic IC Chips 500 mA Positive Voltage Regulators
MC78M05CDTRKG Electronic IC Chips 500 mA Positive Voltage Regulators
MC78M05CDTRKG Electronic IC Chips 500 mA Positive Voltage Regulators
Specifications
Model Number :
MC78M05CDTRKG
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
7500pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :

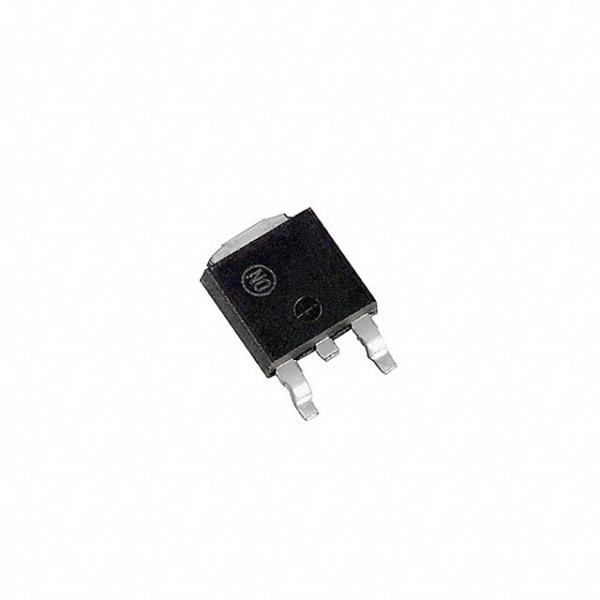

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DPAK
Output Voltage :
5.0 Vdc
Output Voltage Variation :
4.75 − 5.25 Vdc
Line Regulation :
3.0 mV
Input Bias Current :
3.2 mA
Output Noise Voltage :
40 μV
Dropout Voltage :
2.0 Vdc
Description

MC78M00, MC78M00A Series

500 mA Positive Voltage Regulators

The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices, the MC78M00 three−terminal regulators are intended for local, on−card voltage regulation.

Internal current limiting, thermal shutdown circuitry and safe−area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current, with adequate heatsinking is 500 mA.

Features

• No External Components Required

• Internal Thermal Overload Protection

• Internal Short Circuit Current Limiting

• Output Transistor Safe−Area Compensation

• MC78M00A High Accuracy (±2%) Available for 5.0 V, 8.0 V, 12 V and 15 V

• Pb−Free Packages are Available*

MAXIMUM RATINGS (TA = 25°C, unless otherwise noted) (Note 1)

Rating

Symbol

Value

Unit

Input Voltage (5.0 V−18 V)

(20 V−24V)

VI

35

40

Vdc

Power Dissipation (Package Limitation)

Plastic Package, T Suffix

TA = 25°C

Thermal Resistance, Junction−to−Air

Thermal Resistance, Junction−to−Case

Plastic Package, DT Suffix

TA = 25°C

Thermal Resistance, Junction−to−Air

Thermal Resistance, Junction−to−Case

PD

θJA

θJC

PD

θJA

θJC

Internally Limited

70

5.0

Internally Limited

92

5.0

°C/W

°C/W

°C/W

°C/W

Operating Junction Temperature Range

TJ

+150

°C

Storage Temperature Range

Tstg

−65 to +150

°C

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

1. This device series contains ESD protection and exceeds the following tests:

Human Body Model 2000 V per MIL−STD−883, Method 3015.

Machine Model Method 200 V.

Stock Offer (Hot Sell)

Part No. Quantity Brand D/C Package
STP80NF12 8868 ST 07+ TO-220
STP80NF55-06 5356 ST 03+ TO-220
STP80PF55 18024 ST 08+ TO-220
STP8NK100Z 9561 ST 14+ TO-220
STPS20100CT 14636 ST 14+ TO-220
STPS3045CT 10896 ST 13+ TO-220
STPS40120CT 16820 ST 08+ TO-220
STPS40150CT 16504 ST 16+ TO-220
STPS40170CT 10912 ST 12+ TO-220
STPS40L15CT 14614 ST 16+ TO-220
STPS745D 8402 ST 07+ TO-220
STTH2002CT 4924 ST 16+ TO-220
STTH5L06 16214 ST 10+ TO-220
STTH803D 17320 ST 15+ TO-220
STV8179F 41696 ST 16+ TO-220
TDA2030A 15278 ST 16+ TO-220
TDA2030AV 26172 ST 16+ TO-220
TDA2030H 41980 ST 10+ TO-220
TDA2050V 11764 ST 16+ TO-220
TDA2052 2942 ST 16+ TO-220
TIP107 37000 ST 16+ TO-220
TIP115TU 16488 ST 08+ TO-220
TIP120 18320 ST 16+ TO-220
TIP122 39500 ST 16+ TO-220
TIP127 26500 ST 16+ TO-220
TIP127 40000 ST 15+ TO-220
TIP131 13008 ST 15+ TO-220
TIP132 23500 ST 16+ TO-220
TIP140 18276 ST 13+ TO-220
TIP141 42264 ST 16+ TO-220
