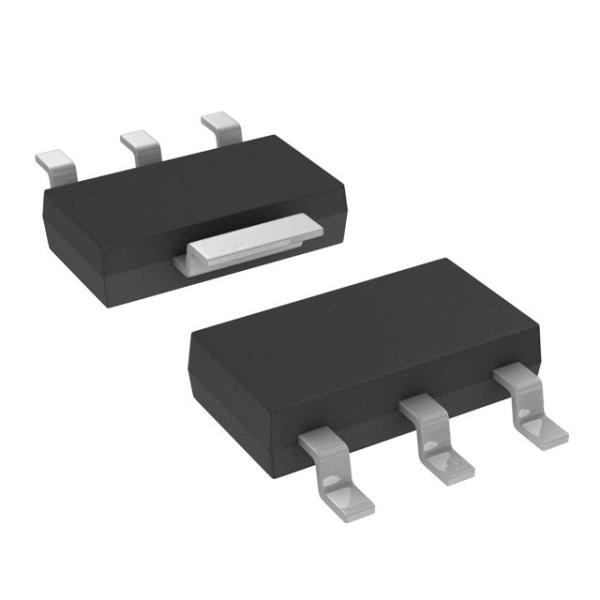

STN1HNK60 N-Channel 600v - 8ω - 1a Dpak/To-92/Ipak/Sot-223 Supermesh Mosfet Transistors
STN1HNK60 N-Channel 600v - 8ω - 1a Dpak/To-92/Ipak/Sot-223 Supermesh Mosfet Transistors
Specifications
Brand Name :
STMICROELECTRONICS
Model Number :
STN1HNK60
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
1570PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Description :
N-Channel 600 V 400mA (Tc) 3.3W (Tc) Surface Mount SOT-223
VDS :
600V
VGS :
± 30V
dv/dt :
3 V/ns
Tstg/Tj :
-55 to 150°C
Description

STN1HNK60
N-CHANNEL 600V - 8Ω - 1A DPAK/TO-92/IPAK/SOT-223 SuperMESH MOSFET

Features

■ TYPICAL RDS(on) = 8 Ω
■ EXTREMELY HIGH dv/dt CAPABILITY
■ ESD IMPROVED CAPABILITY
■ 100% AVALANCHE TESTED

■ NEW HIGH VOLTAGE BENCHMARK
■ GATE CHARGE MINIMIZED

APPLICATIONS

■ LOW POWER BATTERY CHARGERS
■ SWITH MODE LOW POWER SUPPLIES(SMPS)
■ LOW POWER, BALLAST, CFL (COMPACT FLUORESCENT LAMPS)

DESCRIPTION

The SuperMESH™ series is obtained through an extreme
optimization of ST’s well established strip-based PowerM
-ESH™ layout. In addition to pushing on-resistance signi
-ficantly down, special care is taken to ensure a very good
dv/dt capability for the most demanding applications. Such
series complements ST full range of high voltage MOSFETs
including revolutionary MDmesh™ products.


Absolute Maximum ratings

Symbol Parameter Value Unit
DPAK / IPAK TO-92 SOT-223
VDS Drain-source Voltage (VGS = 0) 600 V
VDGR Drain-gate Voltage (RGS = 20 kΩ) 600 V
VGS Gate- source Voltage ± 30 V
ID Drain Current (continuous) at TC = 25°C 1.0 0.4 0.4 A
ID Drain Current (continuous) at TC = 100°C 0.63 0.25 0.25 A
IDM (•) Drain Current (pulsed) 4 1.6 1.6 A
PTOT Total Dissipation at TC = 25°C 30 3 3.3 W
Derating Factor 0.24 0.025 0.025 W/°C
dv/dt (1) Peak Diode Recovery voltage slope 3 V/ns
Tj
Tstg		 Operating Junction Temperature
Storage Temperature		 -55 to 150 °C

(•) Pulse width limited by safe operating area
(1) ISD ≤1.0A, di/dt ≤100A/µs, VDD ≤ V(BR)DSS, Tj ≤ TJMAX.
