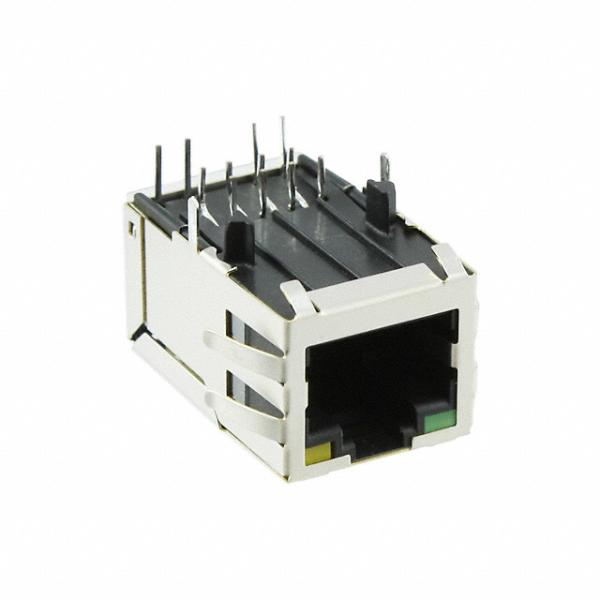

J1011F21PNL Pulse Jack RJ45 1x1 Tab UP JP Series Meets IEEE 802.3
J1011F21PNL Pulse Jack RJ45 1x1 Tab UP JP Series Meets IEEE 802.3
J1011F21PNL Pulse Jack RJ45 1x1 Tab UP JP Series Meets IEEE 802.3
J1011F21PNL Pulse Jack RJ45 1x1 Tab UP JP Series Meets IEEE 802.3
Specifications
Brand Name :
PULSE
Model Number :
J1011F21PNL
Certification :
Original Factory Pack
Place of Origin :
Philippines
MOQ :
20
Price :
Negotiate
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
20000
Delivery Time :
1
Packaging Details :
please contact me for details
Description :
1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Features5 :
350µH minimum OCL with 8mA bias current
Features :
RoHS-5 peak wave solder temperature rating 235°C
Features6 :
High performance for maximum EMI suppression
Features2 :
RoHS-6 peak wave solder temperature rating 260°C
Features3 :
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
Features4 :
Meets IEEE 802.3 specification
Description

J1011F21PNL Pulse Jack RJ45 1x1 Tab UP JP Series Meets IEEE 802.3

1x1 Tab-UP RJ45

Description:

10/100 Base-TX RJ45 1x1 Tab-UP with LEDs 8-pin (J1 series) and 6-pin (JP series) integrated magnetics connector, designed to support applications, such as ADSL modems, LAN-on-Motherboard, and Hub and Switches.

Features and Benefits:

RoHS-5 peak wave solder temperature rating 235°C

RoHS-6 peak wave solder temperature rating 260°C

Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

Electrical Performance Summary:

Meets IEEE 802.3 specification

350µH minimum OCL with 8mA bias current

High performance for maximum EMI suppression

RJ45 Durability Testing Rating
Part Number

Mating Force

(MAX)

Unmating Force

(MAX)

 Durability Plug to Jack
JP/J1 Series 5 lbs./2.268 kgs. 5 lbs./2.268 kgs 750 Insertions 20 lbs./9.072 kgs.
