MOC3063 amplifier ic chip Integrated Circuit Chip 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output
MOC3063 amplifier ic chip Integrated Circuit Chip 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output
MOC3063 amplifier ic chip Integrated Circuit Chip 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output
MOC3063 amplifier ic chip Integrated Circuit Chip 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output
Specifications
Model Number :
MOC3063
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8400pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
Reverse Voltage :
6 Volts
Forward Current — Continuous :
60 mA
Off–State Output Terminal Voltage :
600 Volts
Peak Repetitive Surge Current (PW = 100 µs, 120 pps) :
1 A
Junction Temperature Range :
–40 to +100 °C
Storage Temperature Range :
–40 to +150 °C
Description

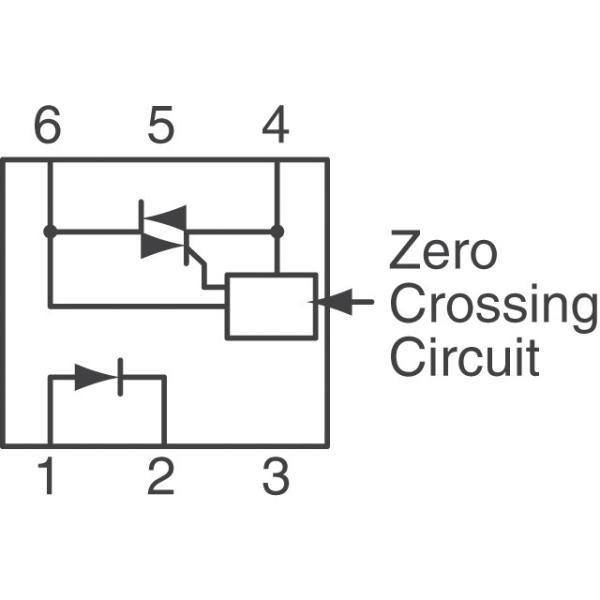

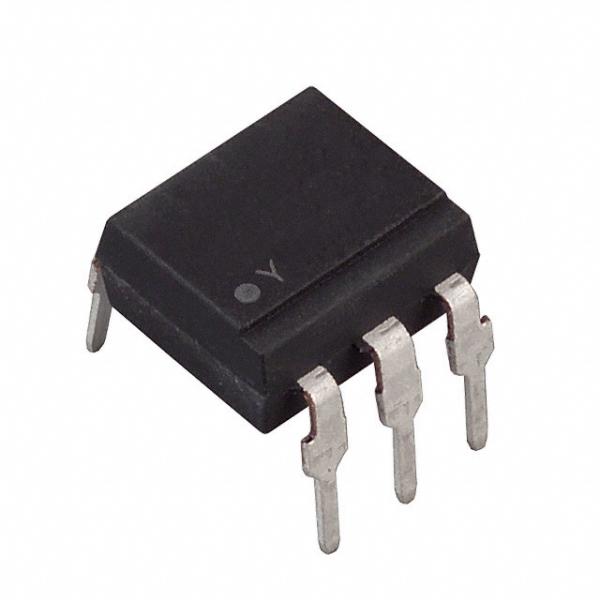

6-Pin DIP Zero-Cross Optoisolators Triac Driver Output

(600 Volts Peak)

The MOC3061, MOC3062 and MOC3063 devices consist of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the functions of Zero Voltage Crossing bilateral triac drivers.

They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.

• Simplifies Logic Control of 115/240 Vac Power

• Zero Voltage Crossing

• dv/dt of 1500 V/µs Typical, 600 V/µs Guaranteed

• To order devices that are tested and marked per VDE 0884 requirements, the suffix ”V” must be included at end of part number. VDE 0884 is a test option.

Recommended for 115/240 Vac(rms) Applications:

• Solenoid/Valve Controls

• Temperature Controls

• Lighting Controls

• E.M. Contactors

• Static Power Switches

• AC Motor Starters

• AC Motor Drives

• Solid State Relays

MAXIMUM RATINGS

Rating Symbol Value Unit
INFRARED EMITTING DIODE
Reverse Voltage VR 6 Volts
Forward Current — Continuous IF 60 mA

Total Power Dissipation @ TA = 25°C

Negligible Power in Output Driver

Derate above 25°C

 PD

120

1.41

mW

mW/°C
OUTPUT DRIVER
Off–State Output Terminal Voltage VDRM 600 Volts

Peak Repetitive Surge Current

(PW = 100 µs, 120 pps)

 ITSM 1 A

Total Power Dissipation @ TA = 25°C

Derate above 25°C

 PD

150

1.76

mW

mW/°C
TOTAL DEVICE

Isolation Surge Voltage(1)

(Peak ac Voltage, 60 Hz, 1 Second Duration)

 VISO 7500 Vac(pk)

Total Power Dissipation @ TA = 25°C

Derate above 25°C

 PD

250

2.94

mW

mW/°C
Junction Temperature Range TJ –40 to +100 °C
Ambient Operating Temperature Range(2) TA –40 to +85 °C
Storage Temperature Range(2) Tstg –40 to +150 °C
Soldering Temperature (10 s) TL 260 °C

1. Isolation surge voltage, VISO, is an internal device dielectric breakdown rating. 1. For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.

2. Refer to Quality and Reliability Section in Opto Data Book for information on test conditions.

PACKAGE DIMENSIONS

Stock Offer (Hot Sell)

Part NO. Q'ty MFG D/C Package
MMSZ4683-GS08 20000 VISHAY 16+ SOD-123
LM4050AIM3X-2.5 2515 NSC 15+ SOT-23
MMSZ3V9T1G 20000 ON 16+ SOD-123
ZXMHC6A07T8TA 7000 ZETEX 15+ SOT223
ATTINY2313V-10PU 3500 ATMEL 13+ DIP-20
MSZ5222BT1G 20000 ON 15+ SOD-123
PIC16F1824-I/P 5308 MICROCHIP 14+ DIP
MAX2021ETX+T 7500 MAXIM 15+ TQFN
LT6231CS8 4482 LT 15+ SOP
LT1399CS#PBF 9686 LINEAR 11+ SOP-16
L6207D 1915 ST 14+ SOP24
BH7868FS-E2 7500 ROHM 08+ SSOP32
PCA8575DB 11920 14+ SSOP
LT1678CS8 6462 LINEAR 16+ SOP-8
MAC223A10 9327 ON 10+ TO-220
PIC16F72-I/SP 5003 MICROCHIP 16+ SOP
LM34DZ 2594 NSC 14+ TO-92
MJD122T4G 38000 ON 16+ TO-263
MC7815BDTRKG 7776 ON 15+ TO-252
PDIUSBD12PW 3740 16+ TSSOP
CY7C65642-48AXC 1574 CYPRESS 15+ TQFP48
